From: Genome wide identification and expression profiling of Bcl2 associated anthanogene family cochaperones reveals abiotic stress response in Ricinus communis L.

Fig. 1

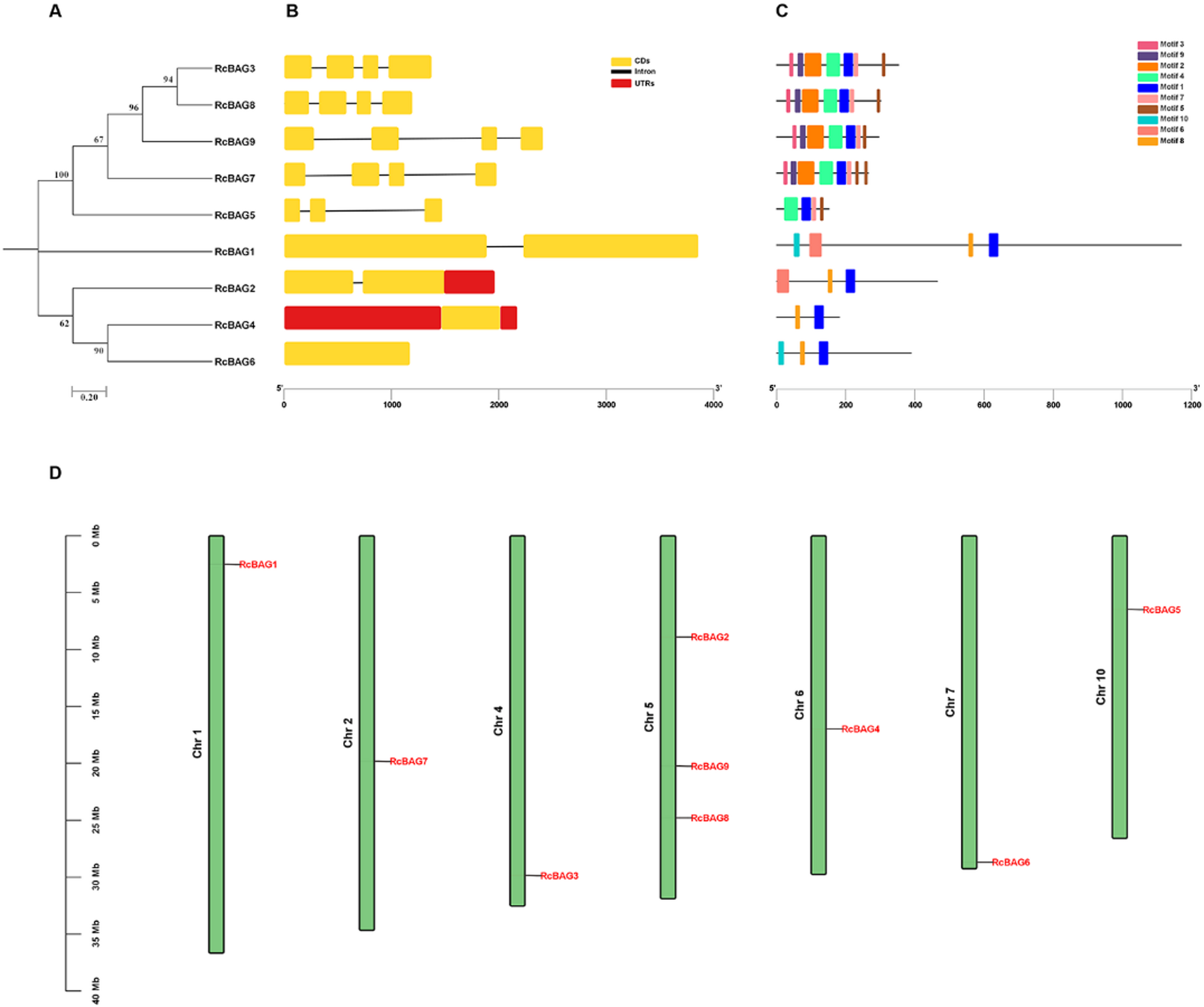

RcBAGs structural and chromosomal location analysis. (A) Phylogenetic tree created using the MEGA software, utilizing the full amino acids sequences of 9 RcBAG proteins. (B) RcBAG gene exon and intron structures. The CDS and UTR portions are depicted as yellow and red rectangles, respectively, while the intron is represented by a black line. The CDS, UTR, and intron lengths of RcBAGs are displayed in a proportional manner. (C) Different colored boxes represent conserved motifs discovered in RcBAG proteins. Using MEME Suite 5.4.1 (https://meme-suite.org/meme/) ten conserved motifs were found. (D) Chromosomal locations of all the 9 RcBAG genes.
