Fig. 11 | Scientific Reports

Fig. 11

From: Tunable, permanent and instantly available super-wettability states on metal surfaces by laser texturing and plasma coating

Fig. 11The alternative text for this image may have been generated using AI.

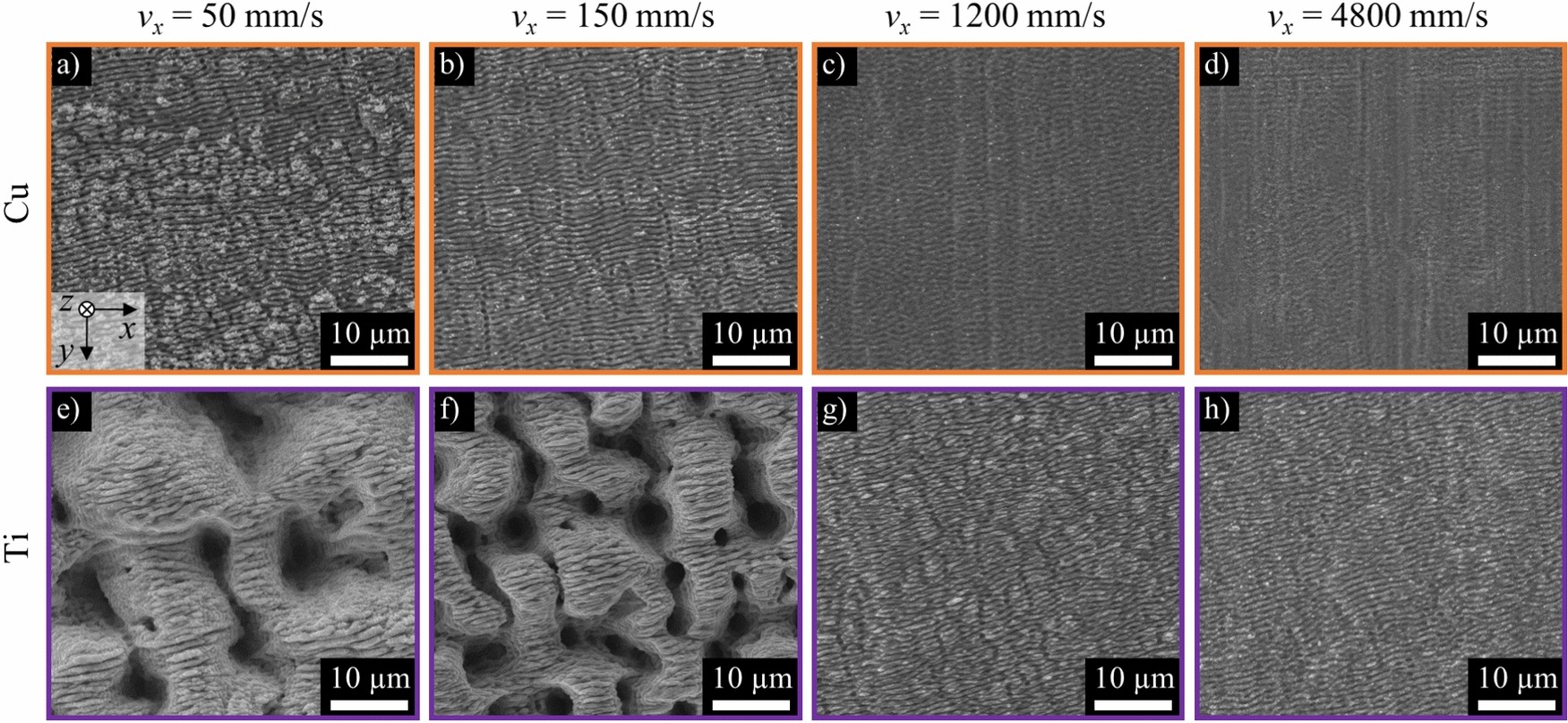

SEM images of surface textures after laser surface texturing with different scanning speeds on stainless steel on copper (Cu, a to d) and the titanium alloy Ti64 (Ti, e to h). λ = 1030 nm, τ = 260 fs, fP = 200 kHz, d0 = 120 ± 5 µm, ϕ0 = 0.65 J/cm2, py = 24 µm, n = 1.
