From: Tunable, permanent and instantly available super-wettability states on metal surfaces by laser texturing and plasma coating

Fig. 6The alternative text for this image may have been generated using AI.

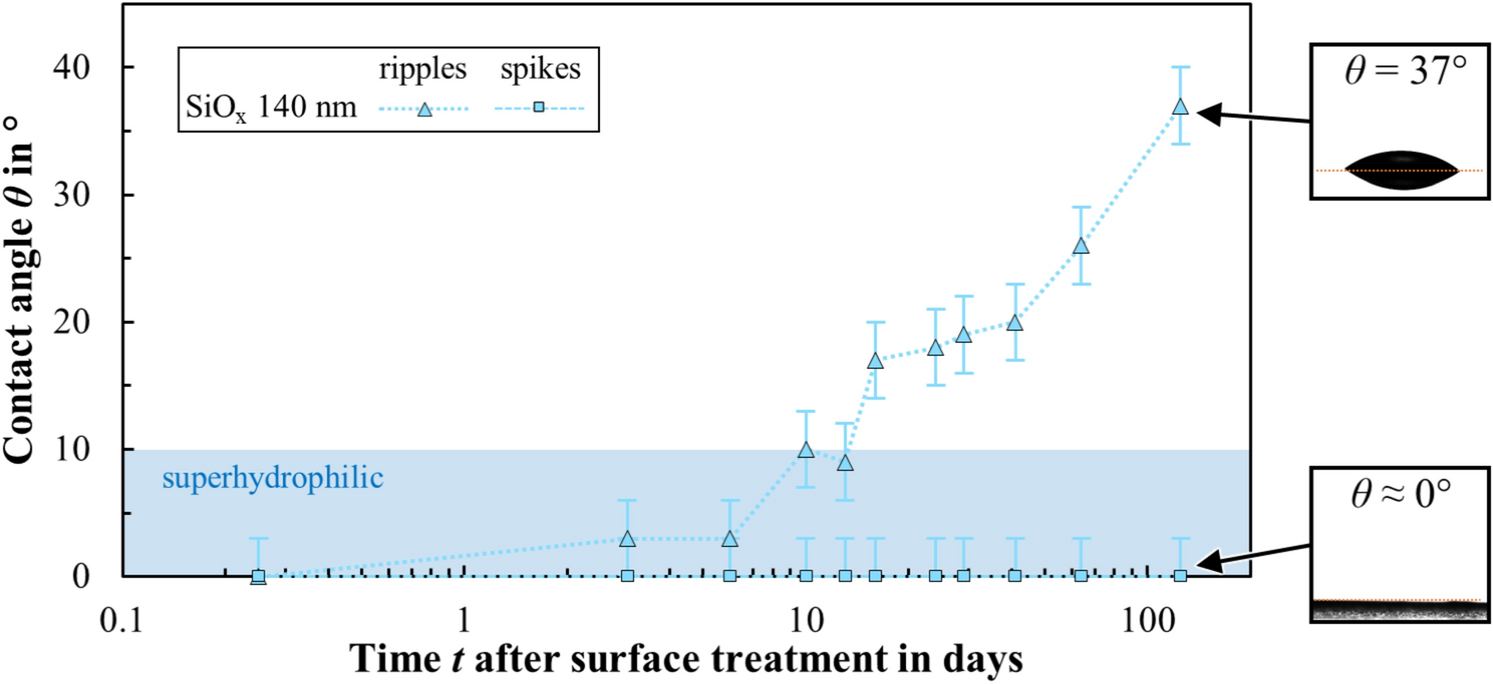

Measured contact angle of DI water as a function of time after surface treatment for different surfaces (ripples, spikes) obtained from laser texturing and plasma coating of a thin SiOx coating with a thickness of d = 140 nm. The insets to the right of the plot show exemplary images of the water droplets on the surface and the corresponding contact angle. The contact angle area of a superhydrophilic state (θ < 10°) is indicated in blue.
