Fig. 11
From: Nylon mesh chip promotes three-dimensional visualization of intestinal organoids

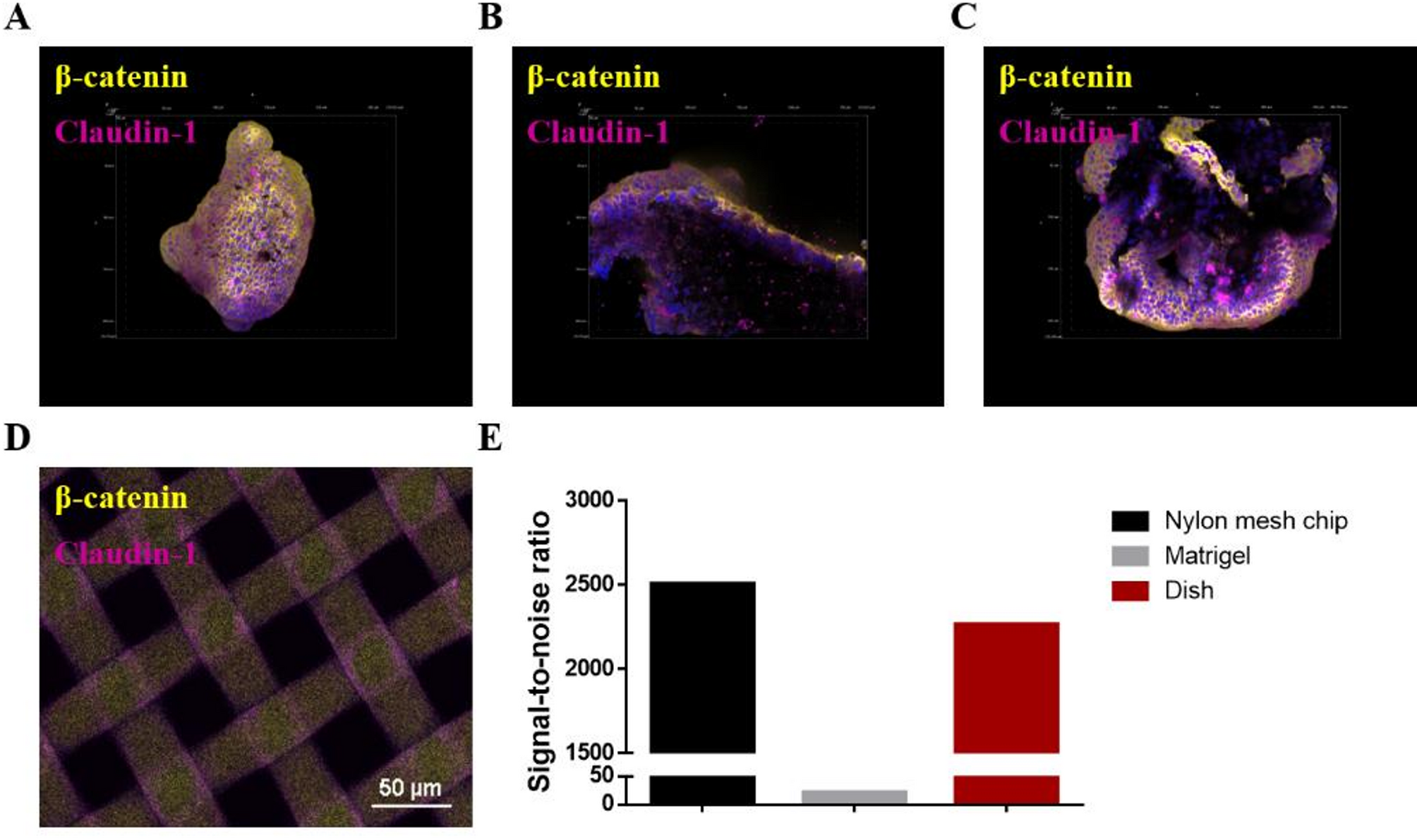

The detail of interface interaction between IO and nylon mesh. (A) IO is labeled by using nylon mesh chip and 3D imaging is presented (scale bar = 50 μm). (B) IO in Matrigel is directly labeled and a 3D image was obtained (scale bar = 50 μm). (C) The free-floating IO in the dish is directly marked and a 3D image is obtained (scale bar = 50 μm). (D) Nylon mesh chip carries autofluorescence (scale bar = 50 μm). (E) Signal-to-noise ratio of these three labeling methods.
