Fig. 1
From: The origin of modern North Africans as depicted by a massive survey of mitogenomes

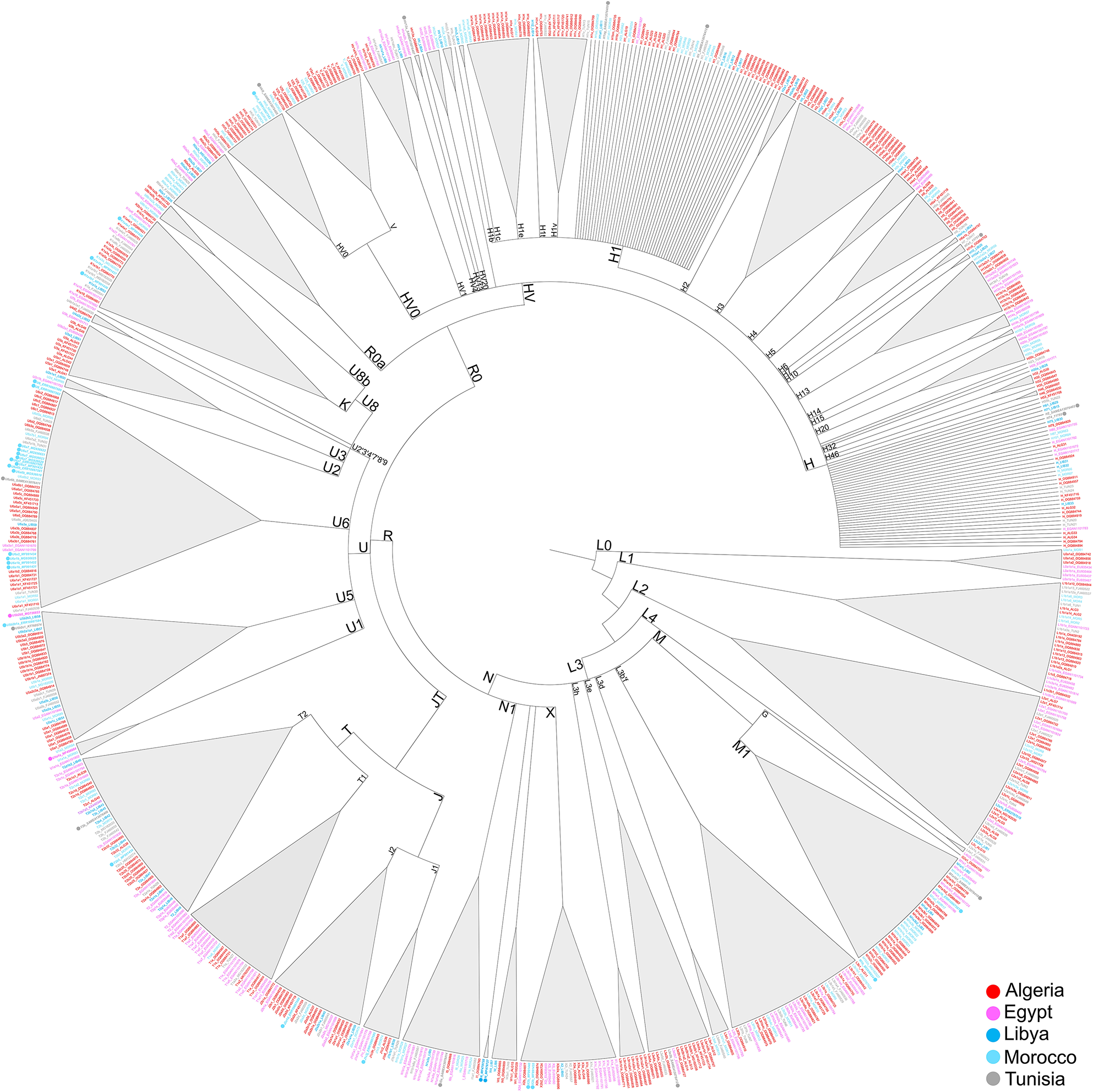

Schematic phylogenetic tree of modern (N = 733) and ancient (N = 43) mitogenomes from North Africa. Grey triangles correspond to different haplogroups and sub-haplogroups and their width is proportional to the number of included samples. Ancient subjects are indicated in bold italic and are flanked with a circular marker (see Supplementary Figure S1 for details).
