Fig. 4
From: Investigation of the mechanism and application of pressure relief roadway in preventing rock burst

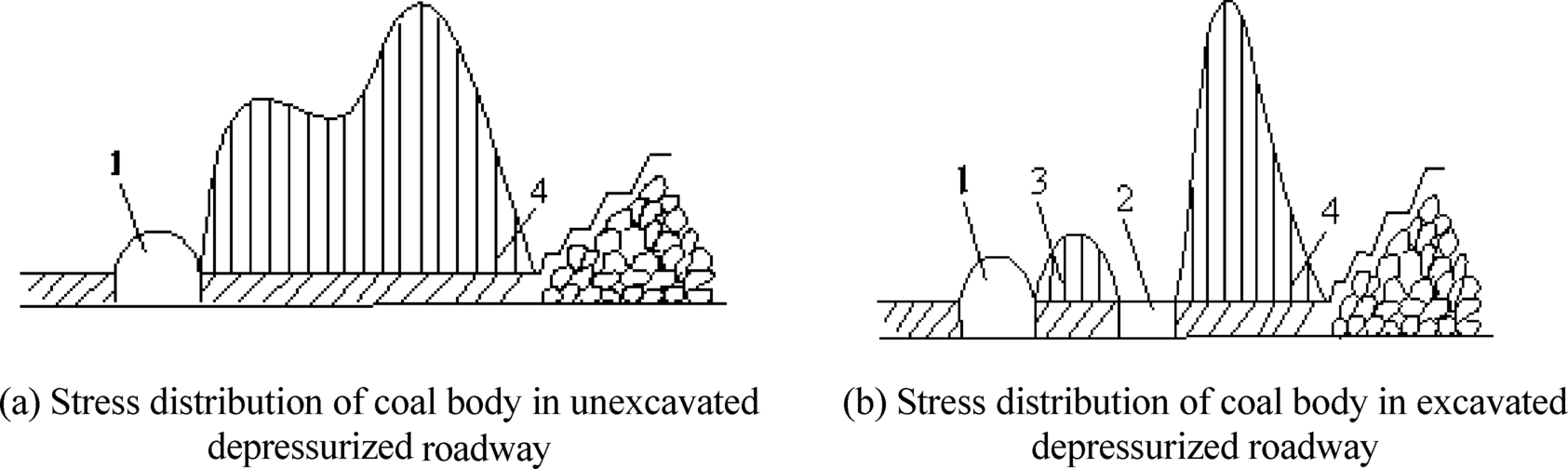

Principle diagram of excavating pressure relief roadway inside coal pillar. 1-Protected roadway; 2-relief roadway; 3-yield pillar; 4-abutment coal pillar.
