Fig. 4
From: Edge-of-chaos operation and persistent dynamics for neuromorphic meminductor computing

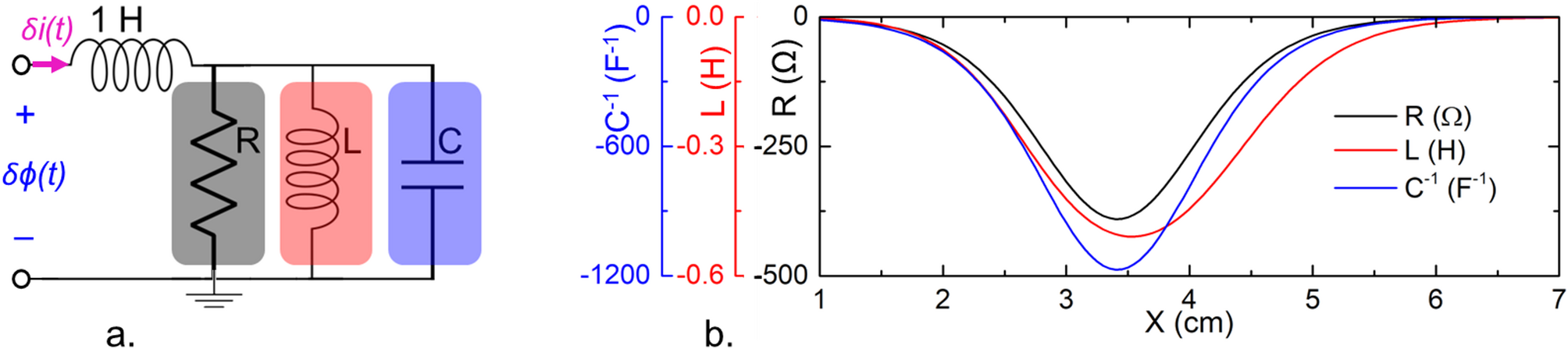

Virtual equivalent linear circuit. (a) Linear RLC circuit yielding the same transfer function as the small-signal model of the uncoupled volatile meminductor. (b) R, L, and C values extracted by comparing the transfer functions of the meminductor and the equivalent circuit plotted as functions of the state variable, X. R, L, and C are all negative within the meminductive range and reduce to short-circuits outside.
