Fig. 6
From: Edge-of-chaos operation and persistent dynamics for neuromorphic meminductor computing

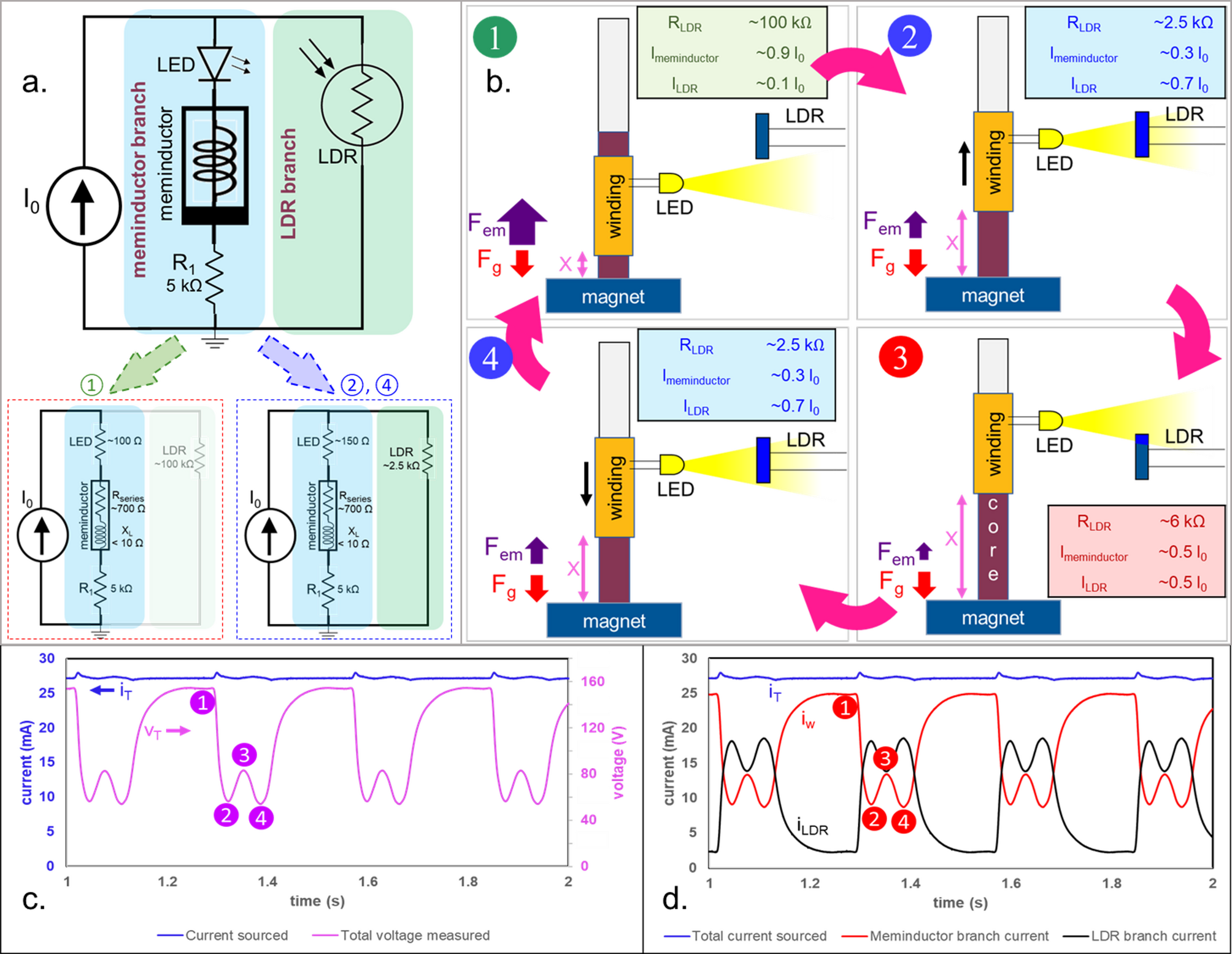

Circuit setup and results. (a) Electrical circuit representation of the meminductor coupled to an LP network. The two border cases of no illumination and maximum illumination of the LDR highlighted in the insets. (b) Setup configuration shown for different timeslices during a single cycle, labelled ①–④. Instantaneous values of the LDR resistance and branch currents for each timeslice are shown in the inset of each panel. (c, d) Sourcing a constant current of 27 mA results in persistent oscillations due to a dynamically changing load. Oscillations in total voltage measured, VT (c) and individual branch currents, iw and iLDR (d) shown, along with timeslice labels, ①–④.
