Fig. 1 | Scientific Reports

Fig. 1

From: Differential trade-offs between morpho-physiological, antioxidant profile and nutritional qualities of proso millet seedlings under elevated UV-B radiation

Fig. 1

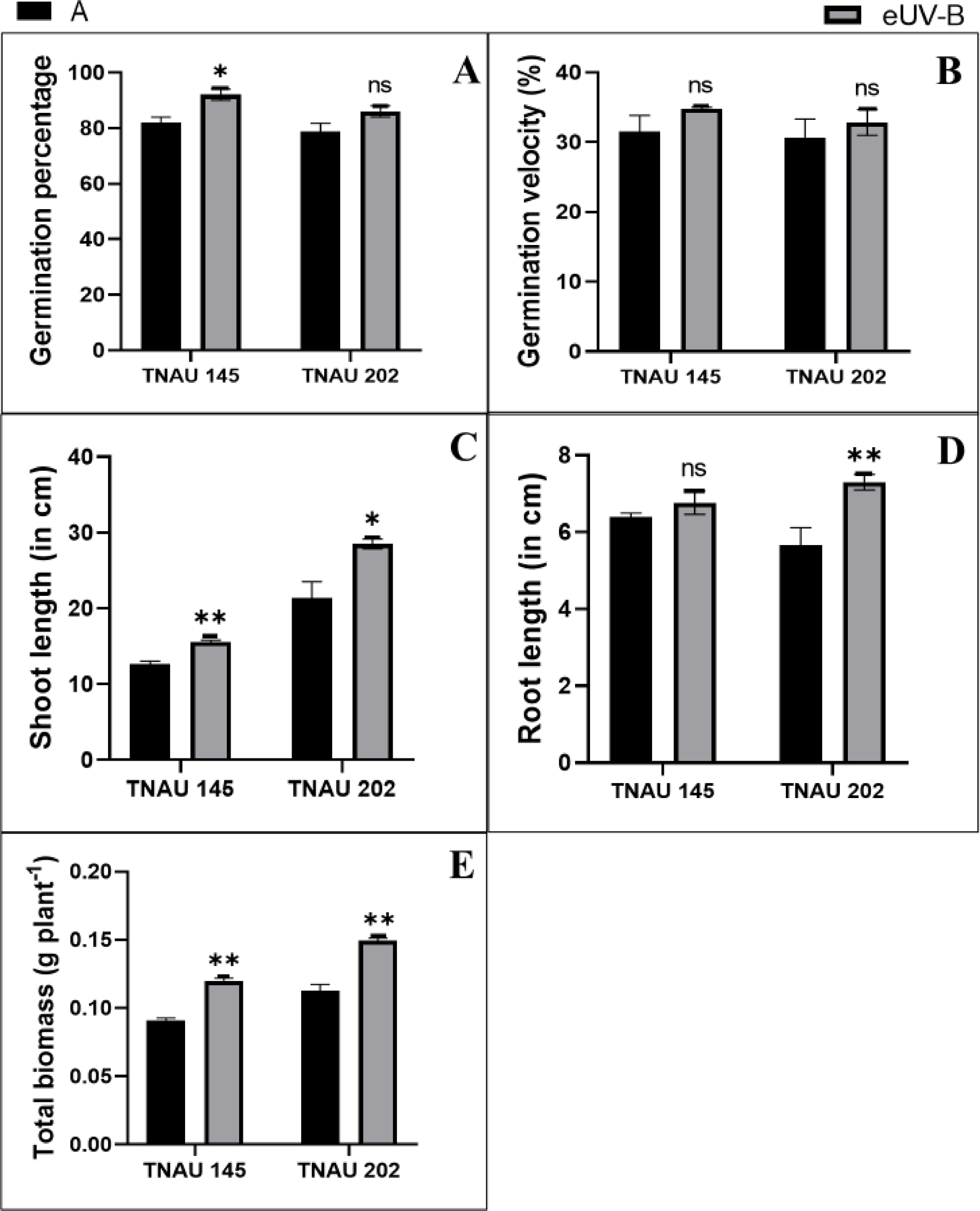

Effects of eUV-B radiation on germination values and morphological parameters in Proso millet cultivar TNAU 145 and TNAU 202. (A) Germination percentage (GP); (B) Germination velocity (%) (GV); (C) Shoot length (SL); (D) Root length (RL) and (E) Total biomass (TB). Values shown as bars are mean ± SD. Level of significance: *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ns: Not significant, A: ambient and eUV-B: elevated UV-B.
