Fig. 11

From: The analysis of the progressive local failure process of the Longquan Reservoir dam based on the global-local dynamic strength reduction method

Fig. 11

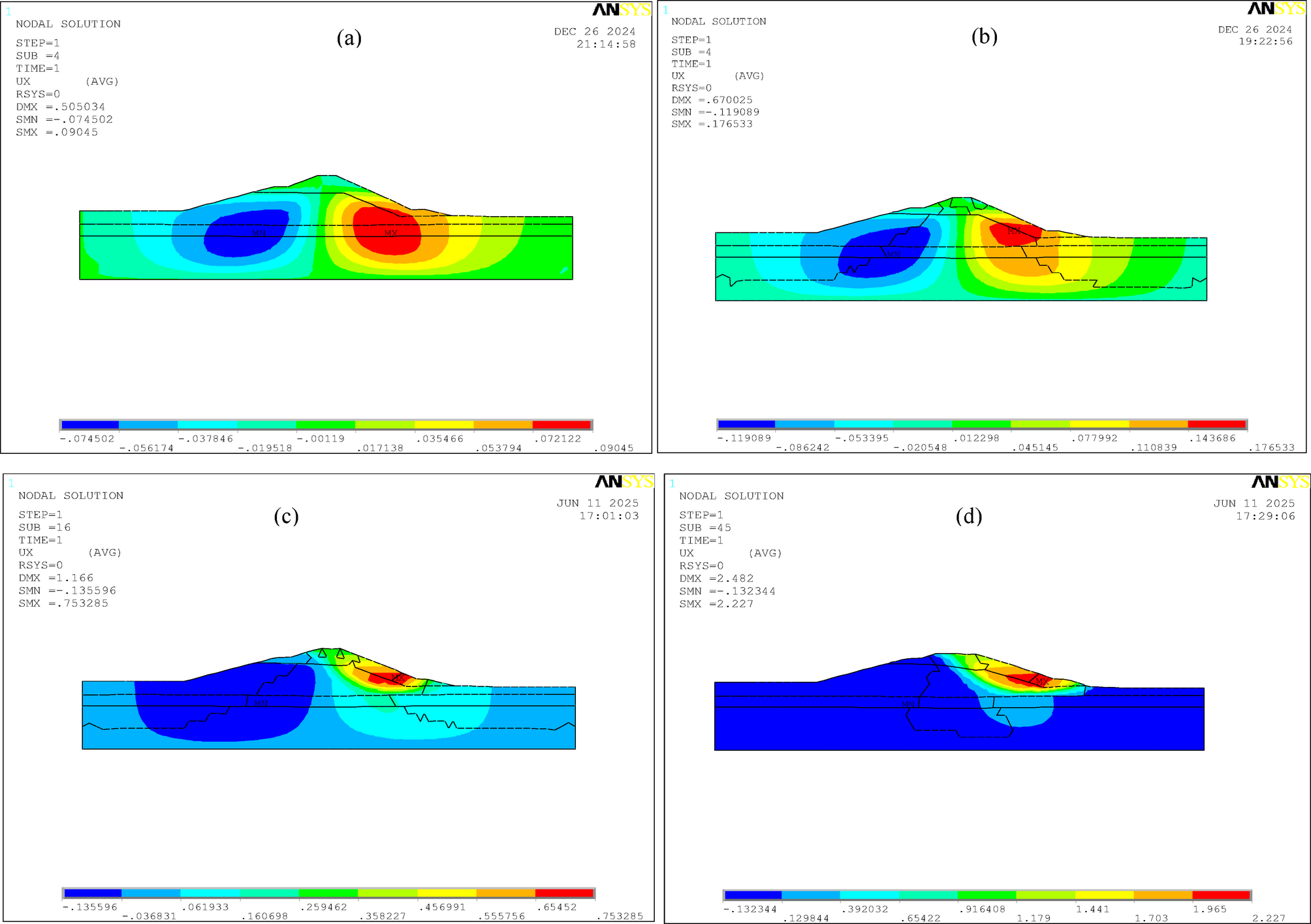

Evolution of horizontal displacement contour maps obtained by the double strength reduction method 3 with the degradation of strength parameters (units: m): (a) original strength parameters; (b) global zone Fc = 1.21, Fφ = 1.1, shear zone Fφ = 1.1; (c) global zone Fc = 1.44, Fφ = 1.2, shear zone Fφ = 1.1; (d) global zone Fc = 1.69, Fφ = 1.3, shear zone Fφ = 1.1.
