Fig. 15
From: Automatic strip layout design in progressive dies using the grouping genetic algorithm

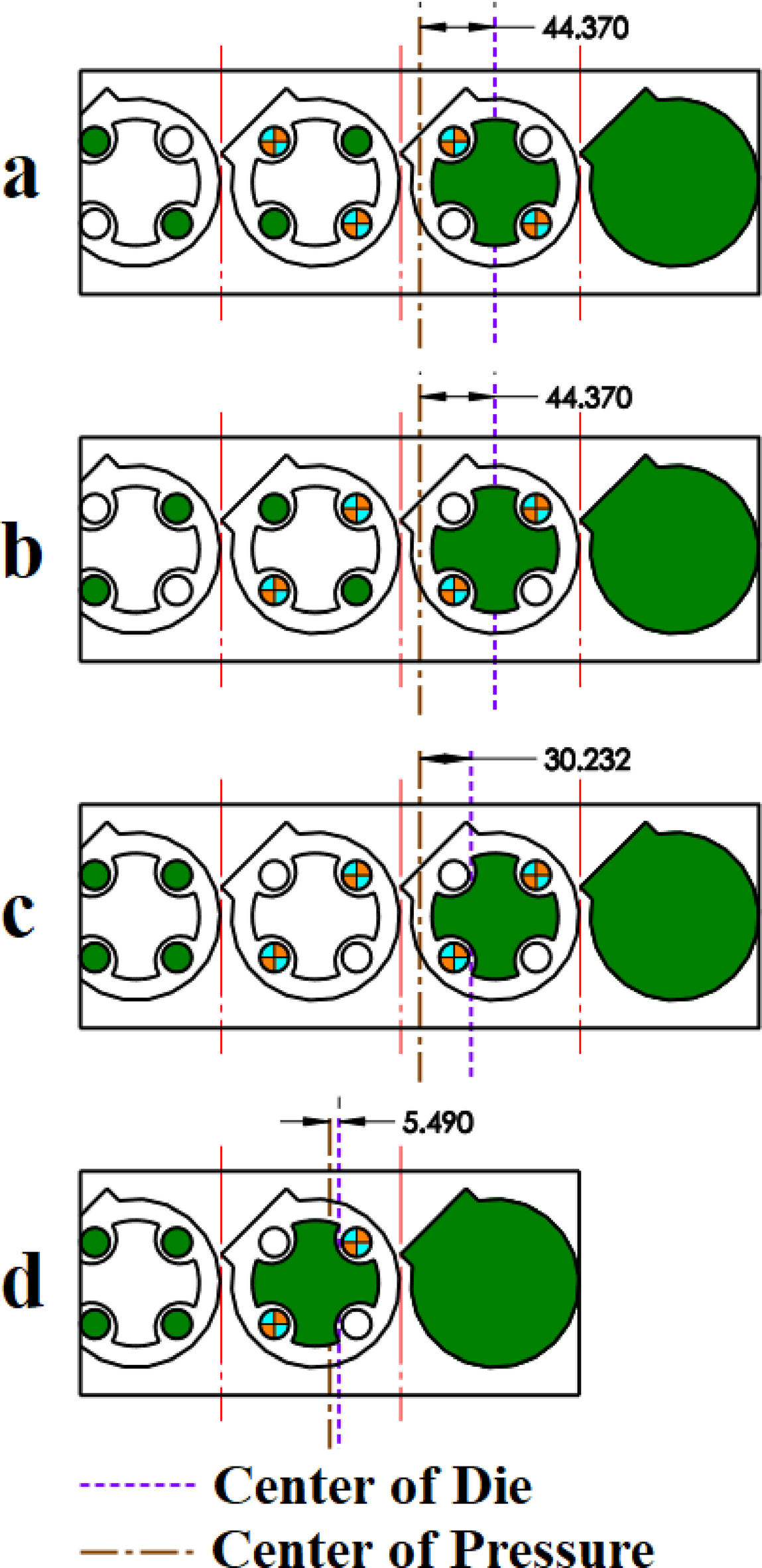

Distance between the die’s geometric center and pressure center for example 3. (a) Proposed plan by Dequan et al., (b) Proposed plan by Moghaddam et al., (c) Modified plan by Moghaddam et al., (d) Proposed plan by authors.
