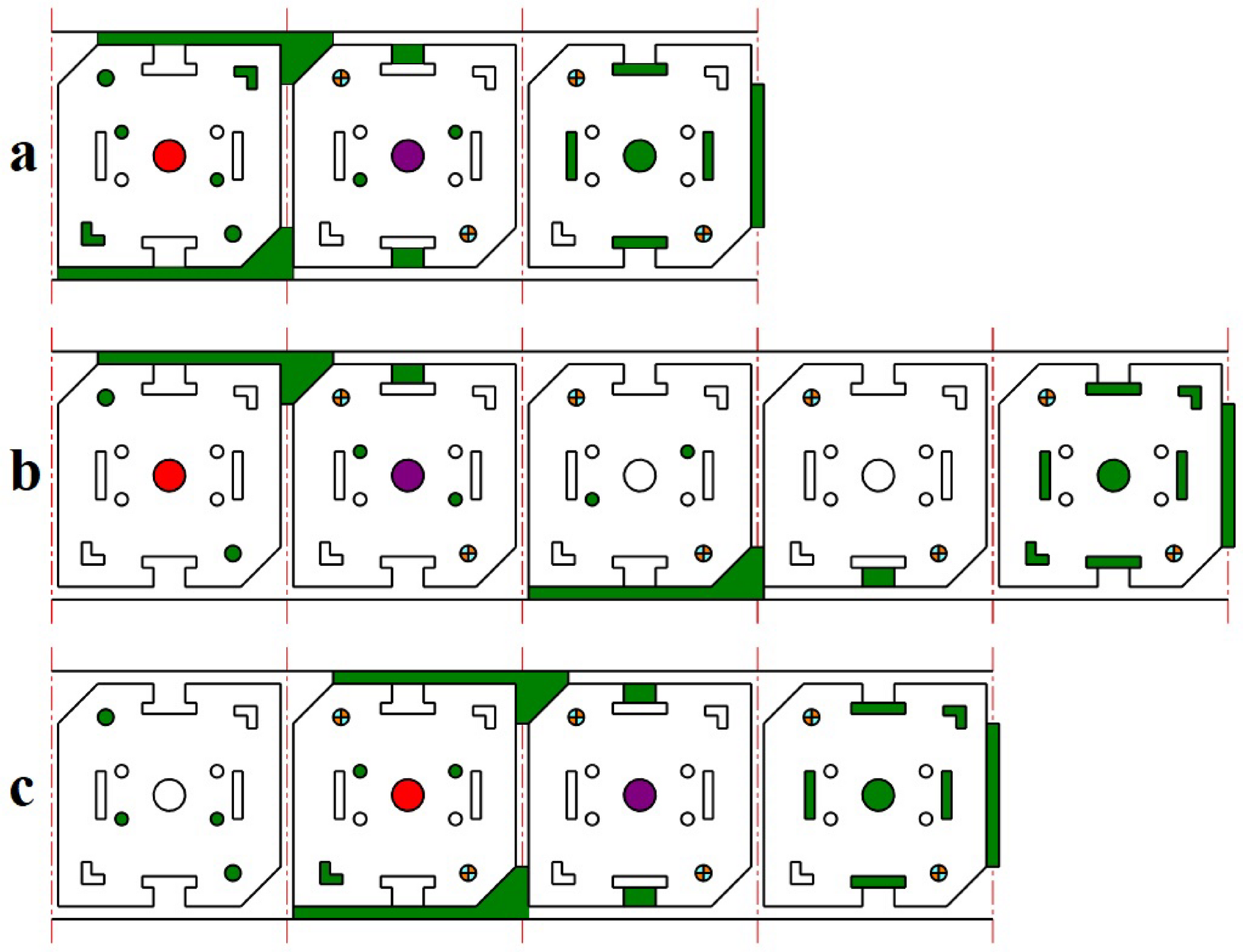

Fig. 8
From: Automatic strip layout design in progressive dies using the grouping genetic algorithm
Strip layout design for example 1. (a) Proposed plan when the first objective is considered, (b) Proposed plan when the second objective is considered, (c) Proposed plan when two objectives are considered.
