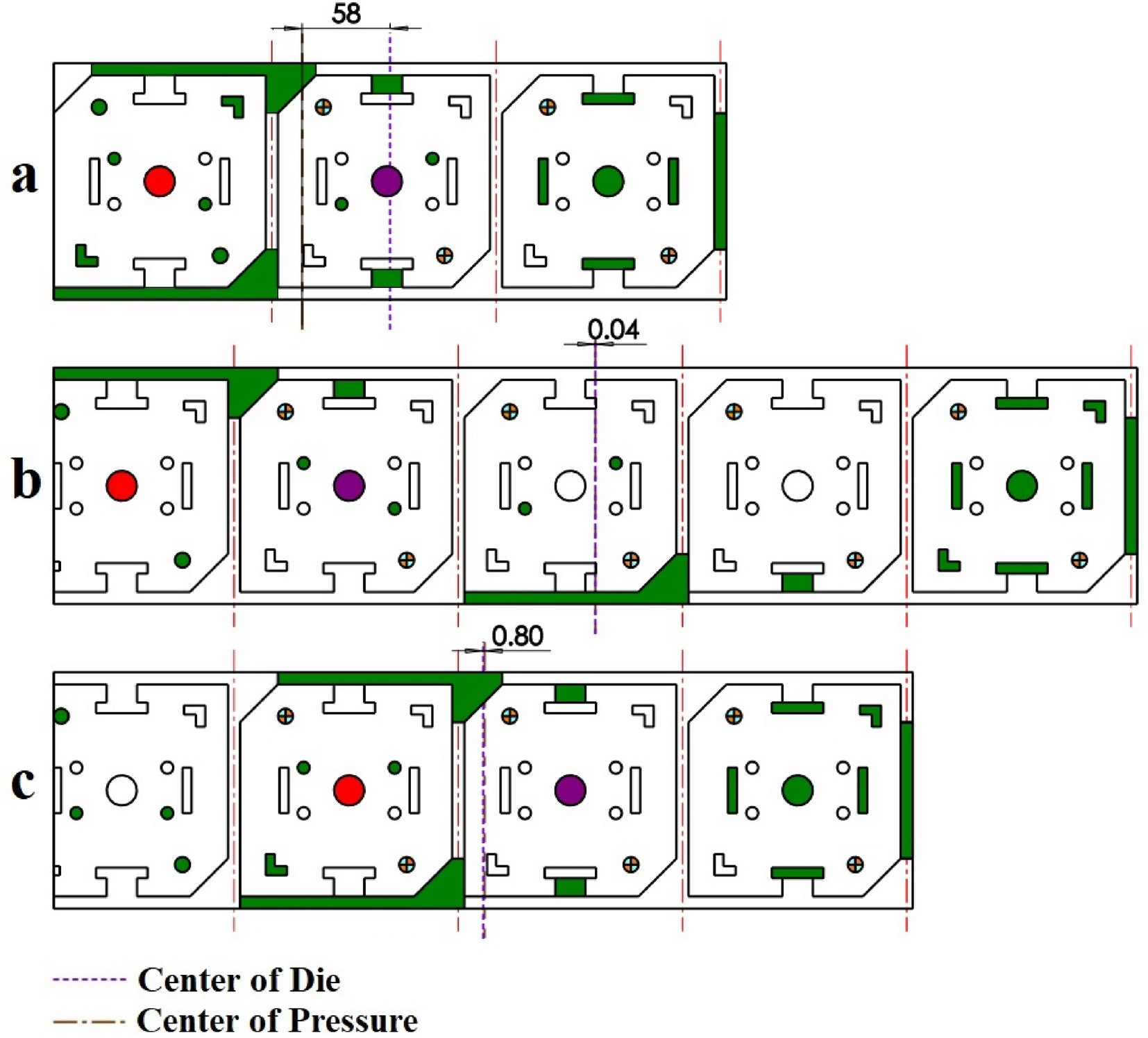

Fig. 9
From: Automatic strip layout design in progressive dies using the grouping genetic algorithm
Distance between the die’s geometric center and pressure center for example 1. (a) Proposed plan when the first objective is considered, (b) When the second objective is considered, (c) When two objectives are considered.
