From: Seismic characterization of lava flow facies in the critical zone of the deccan traps using shear wave velocity models

Fig. 11

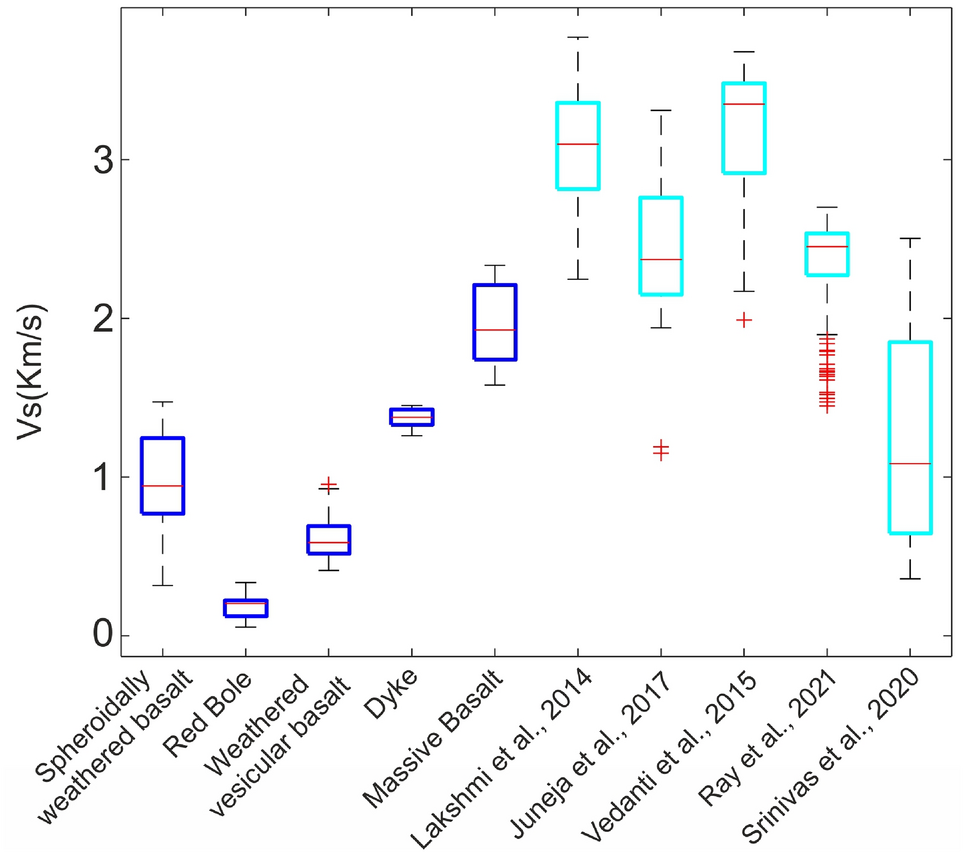

Shear wave velocity classification prepared using a co-analysis of the exposed geological section and the S-wave velocities observed in this study (blue-colored box) along with the velocities reported in the literature (cyan-colored box) from the Deccan region. Red line denotes the median velocity values. Note that velocity values used in Lakshmi et al., 201459 correspond only to the Bushe and Poladpur Formations.
