From: Molecular self-assembly mediates the flocculation activity of benzimidazole derivatives against E. coli

Fig. 6

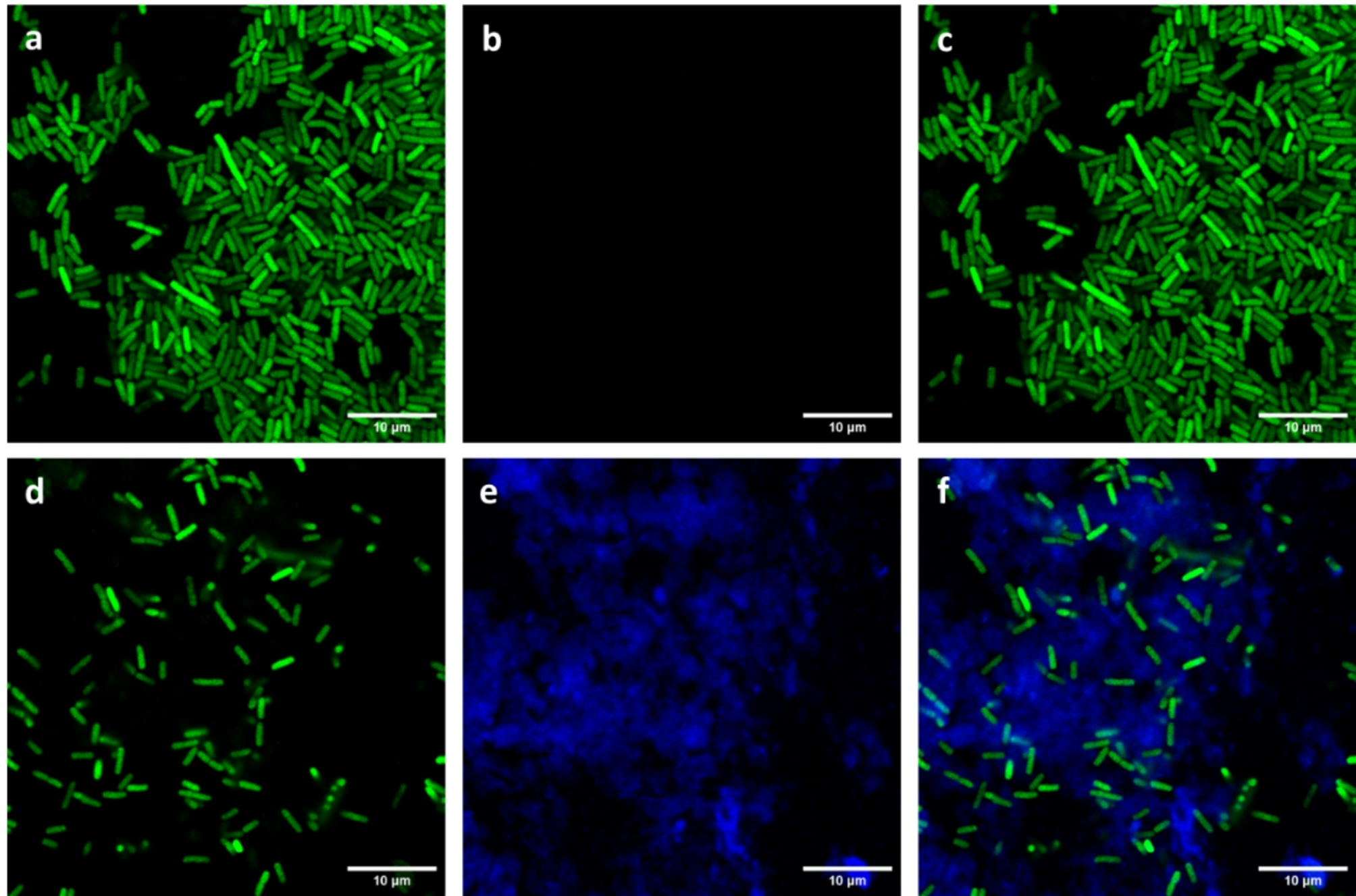

Confocal microscopy images of fluorescent E. coli cultures. Panels (a–c) show a genetically modified E. coli K-12 MG1655 strain expressing green fluorescent protein (GFP; λem = 509 nm), observed respectively using (a) the green channel, (b) the blue channel, and (c) a merge of both. Panels (d–f) show a culture of the same E. coli strain after flocculation with compound 8, observed under the same conditions: (d) green channel, (e) blue channel, and (f) merged image. The green signal corresponds to fluorescence of the bacterial GFP, while the blue signal corresponds to the intrinsic fluorescence of compound 8 (λex = 318 nm, (λem = 376 nm). Scale bar: 10 μm.
