Fig. 7

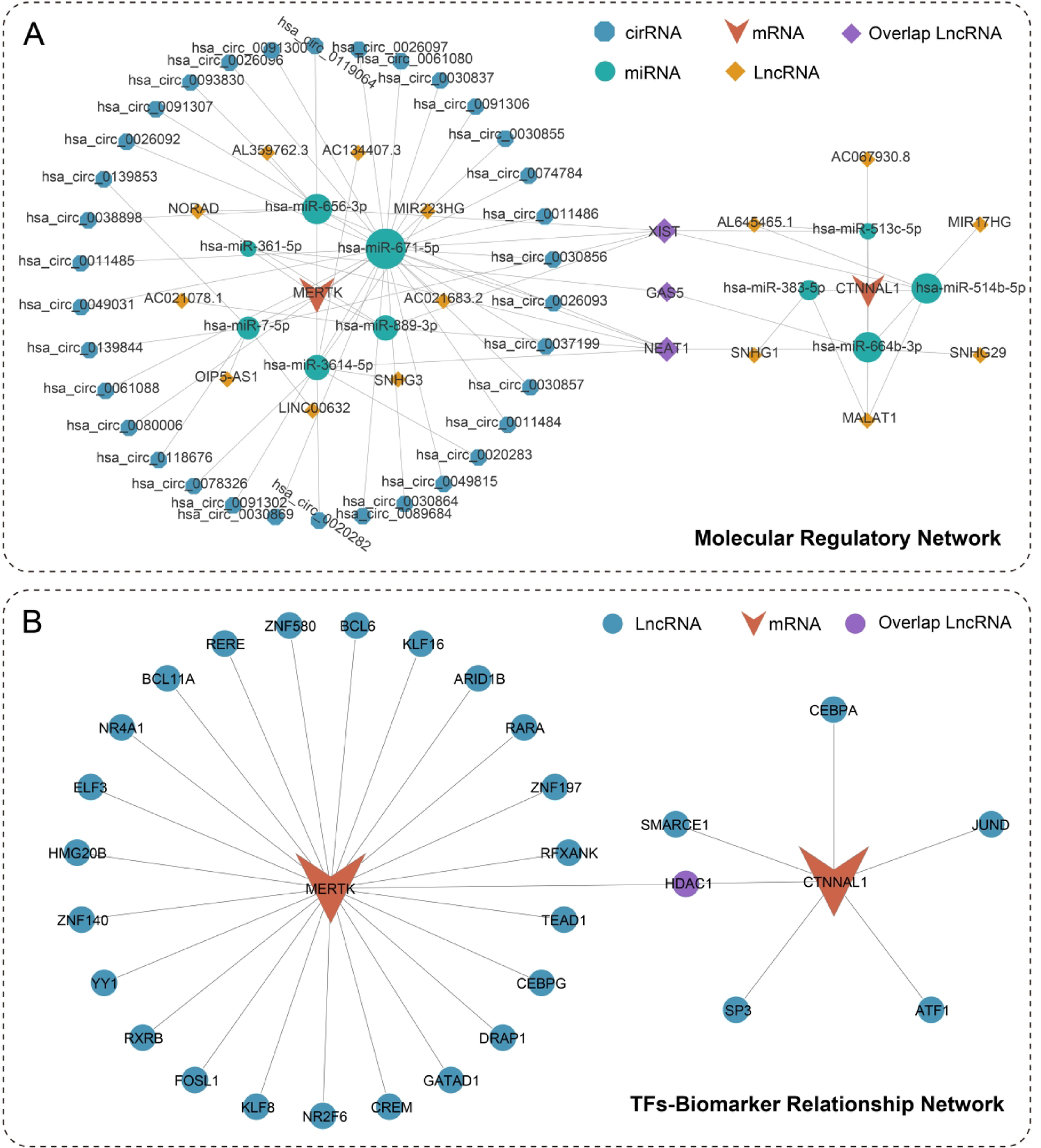

Molecular regulatory networks for biomarkers CTNNAL1 and MERTK. (A) Predicted circRNA–miRNA–mRNA and lncRNA–miRNA–mRNA interaction networks for CTNNAL1 and MERTK, showing regulatory connections with non-coding RNAs (circRNAs, lncRNAs) targeting miRNAs that interact with CTNNAL1 and MERTK. (B) Transcription factors (TFs) network for CTNNAL1 and MERTK, displaying TFs predicted to regulate these biomarkers. Arrows indicate regulatory interactions, with key TFs highlighted.
