Fig. 8

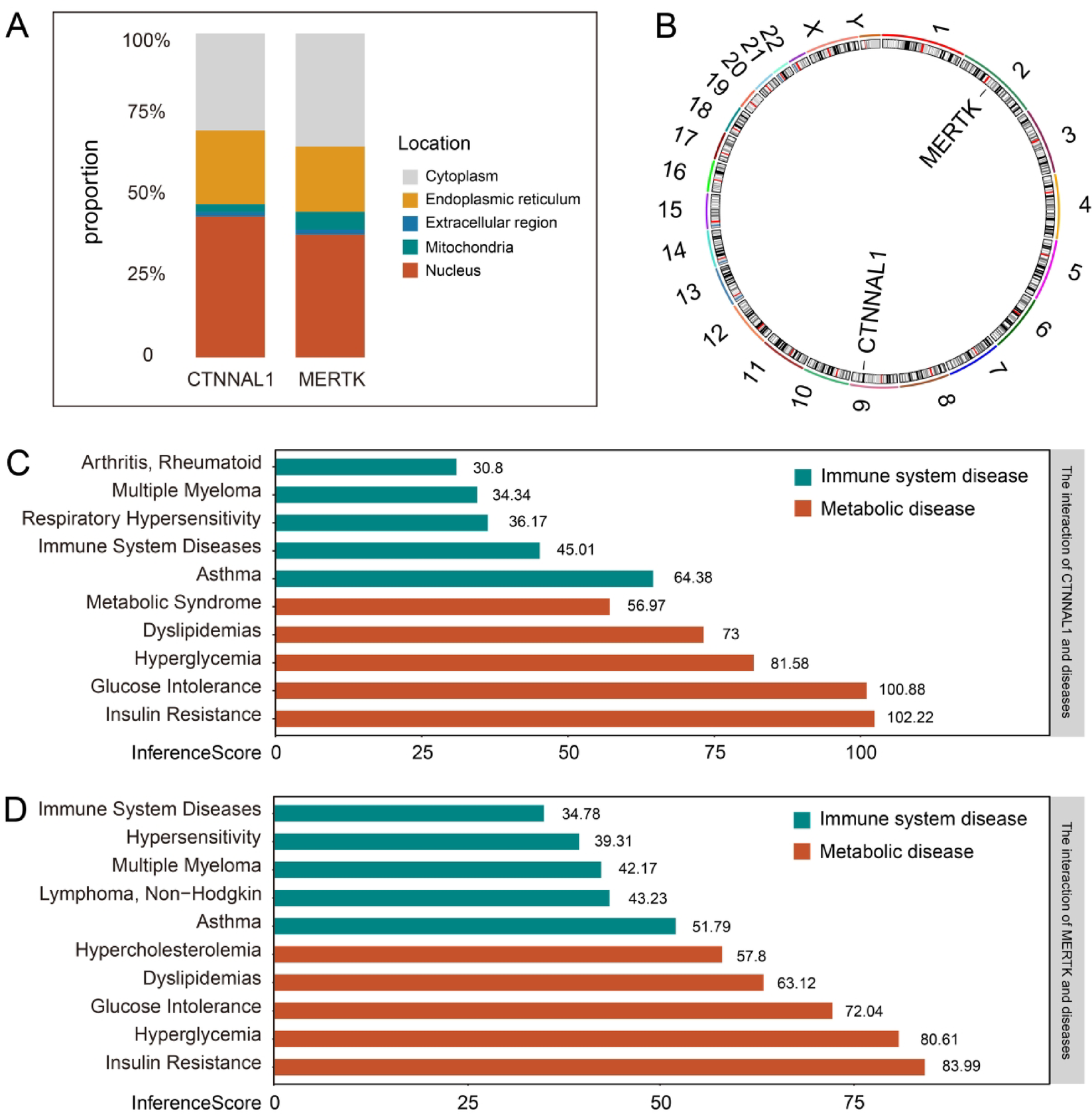

Subcellular localization, chromosomal mapping, and disease association analysis of biomarkers CTNNAL1 and MERTK. (A) Predicted subcellular localization of CTNNAL1 and MERTK across different cellular compartments. (B) Chromosomal locations of CTNNAL1 (chromosome 9) and MERTK (chromosome 2), displayed on a circular chromosome map. (C, D) Disease association analysis for CTNNAL1 and MERTK with immune and metabolic diseases, ranked by InferenceScore.
