Fig. 3
From: A multi strategy bidirectional RRT* algorithm for efficient mobile robot path planning

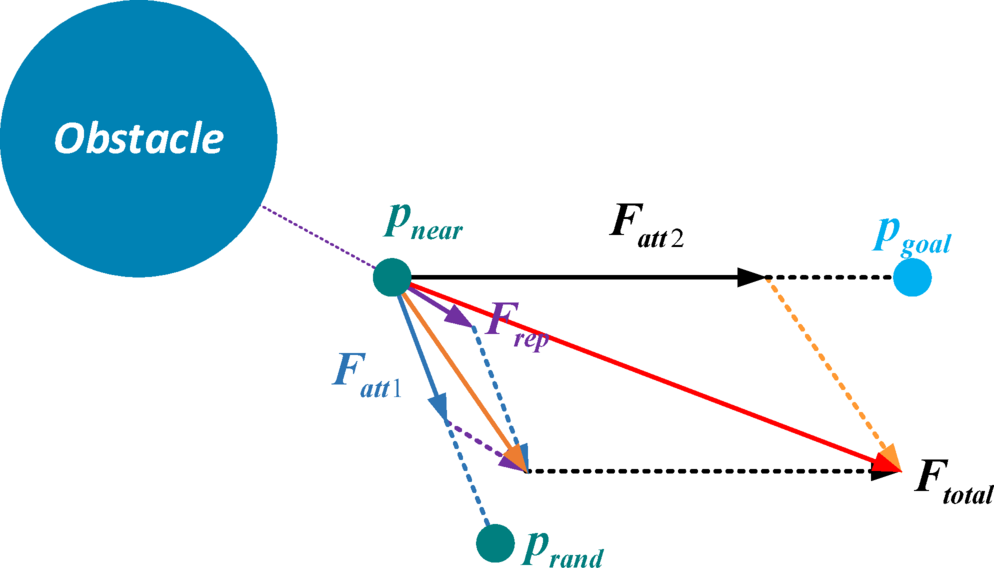

The force analytical graph of\({p_{near}}\). The parallelogram law is used to combine two gravitational forces into a single resultant force. Similarly, the parallelogram law is used to combine the attractive and repulsive forces to form the final resultant force.
