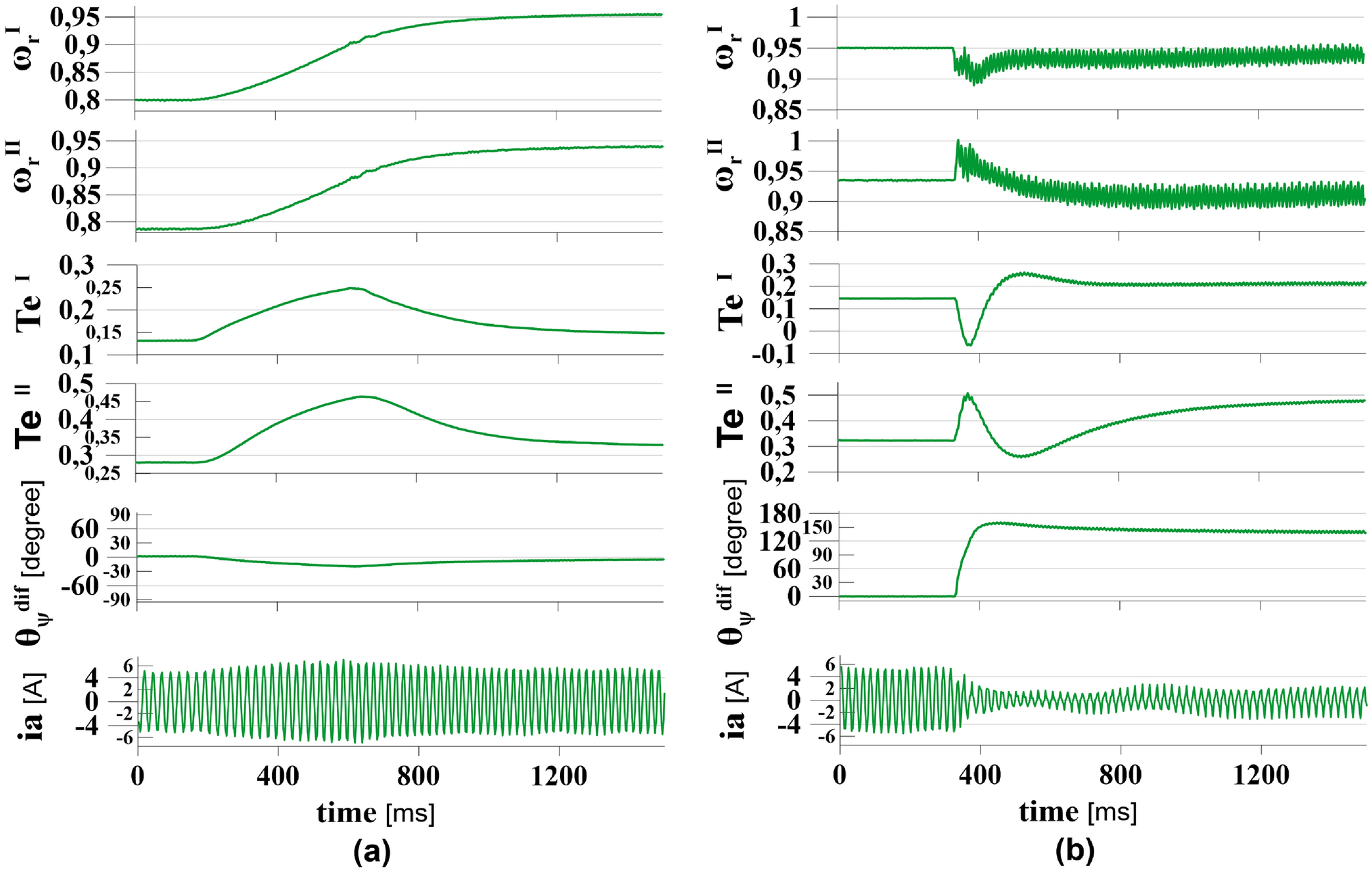

Fig. 11
From: Improved speed control of dual induction motor drive powered by a single five-leg VSI
Motor 1 and 2 rotors’ speed, common-leg current, mutual flux position and estimated torque for each machine: (a) step change in rotor speed, from 0.8 to 0.95; (b) step change in mutual flux position, from 0° to 150°.
