Fig. 2

From: Entanglement distribution in lossy quantum networks

Fig. 2

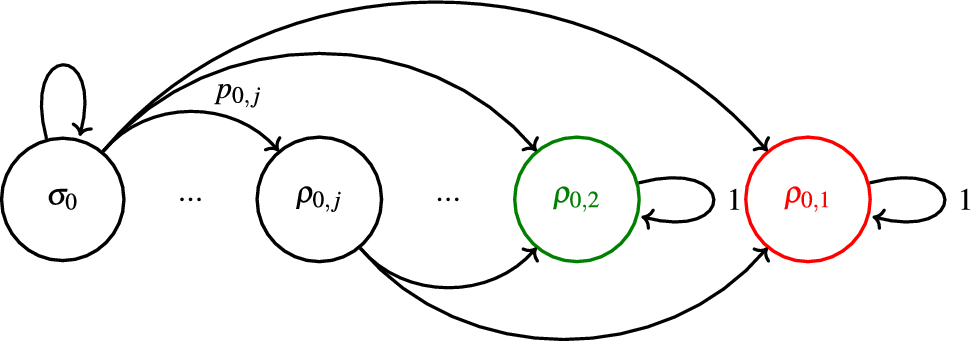

Markovian chain representation of a lossless r-round LOCC protocol \(\mathscr {L}_0^{r}\). Nodes and arrows represent the quantum states of (18), and their corresponding probabilities, respectively. Further, end nodes (that terminate the protocol once reached) are depicted in green and red, representing, respectively, Bell and separable states.
