From: Up-regulation of blood-circulating TIM-4-expressing monocytes and potential diagnostic biomarker sTIM-4 in primary liver cancer

Fig. 5

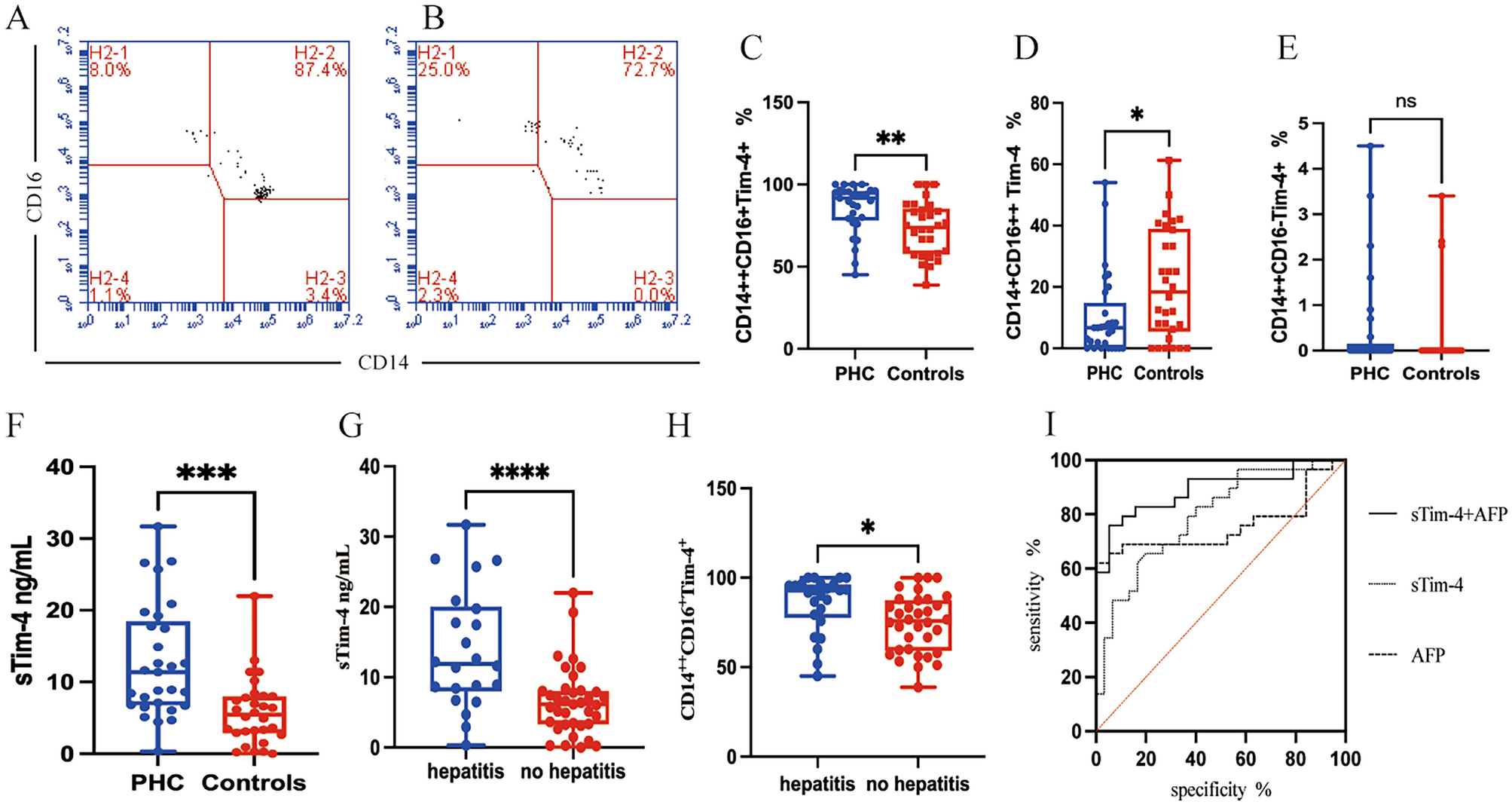

(A) Flowchart of TIM-4 expression in the monocytes of PHC patients. (B) Flowchart of TIM-4 expression in the monocytes of patients in the normal control group. (C) Flowchart of TIM-4 expression in the PHC and control groups intermediate-type mononuclear cells. Statistical graph of the expression of nuclear cell subsets. (D) Statistical graph of the expression of TIM-4 in non-classical monocyte subsets in the PHC and control groups. (E) TIM-4 in classical monocytes in the PHC and control groups. Statistical chart of subpopulation expression. (F) Concentration of sTIM-4 in plasma. (G) Statistical chart of the differences in the expression levels of sTIM-4 between the hepatitis and non-hepatitis groups. (H) Intermediate-type monocyte subset Tim-4 between the hepatitis group and the non-hepatitis group. (I) ROC curve of AFP combined with sTIM-4 for the diagnosis of PHC.
