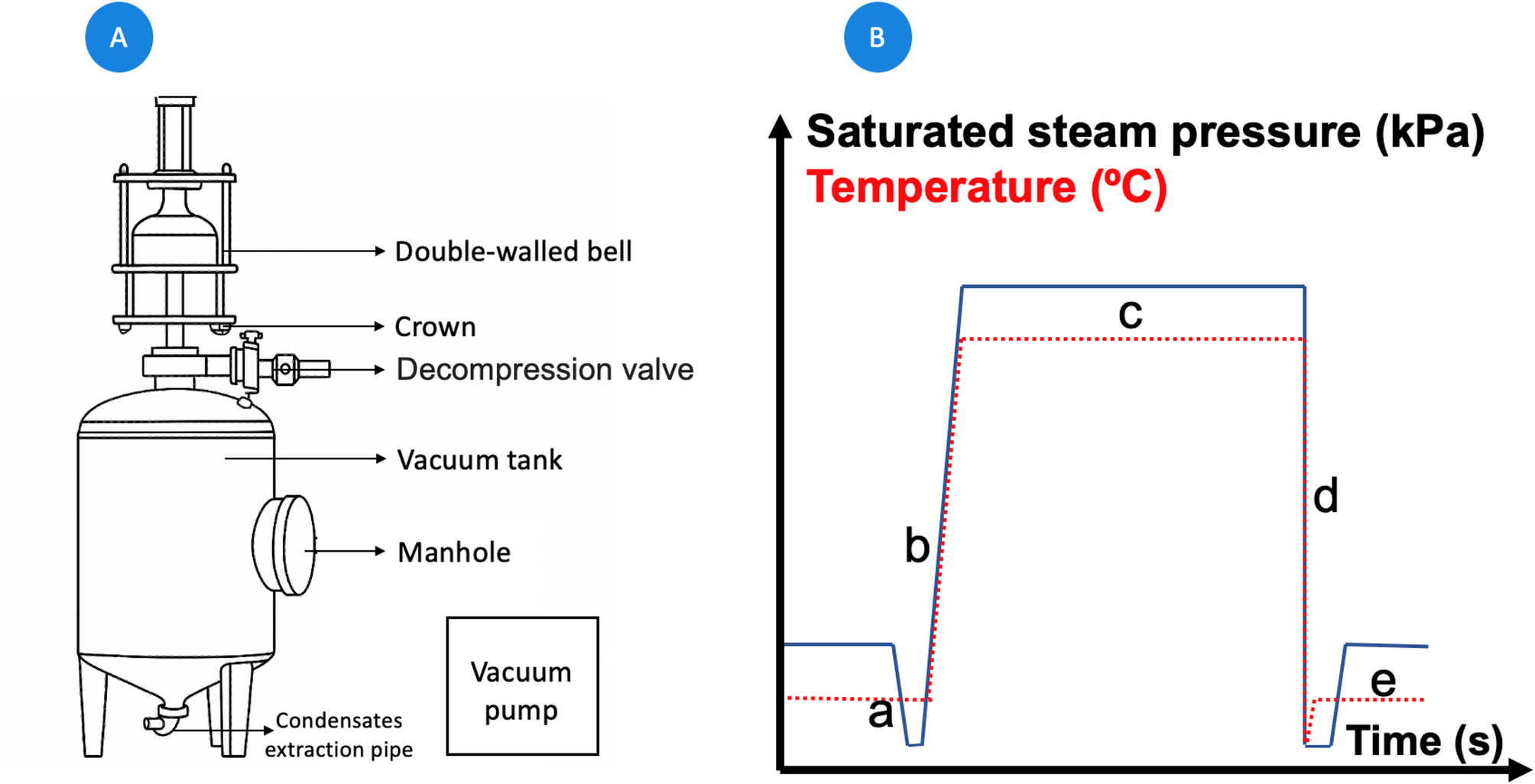

Fig. 1

(A) General diagram of DIC equipment. (B) General diagram of a DIC cycle, where: (a) is the establishment of an initial vacuum in the processing vessel; (b) is the injection of saturated dry steam at the selected temperature; (c) is the maintenance of treatment temperature during the time chosen; (d) is the instant controlled pressure drop towards a vacuum; and (e) is the release to atmospheric pressure.
