From: Characterization of growth differentiation factor 15 (GDF15) as a neurotropic adipokine permeable to the brain

Fig. 1

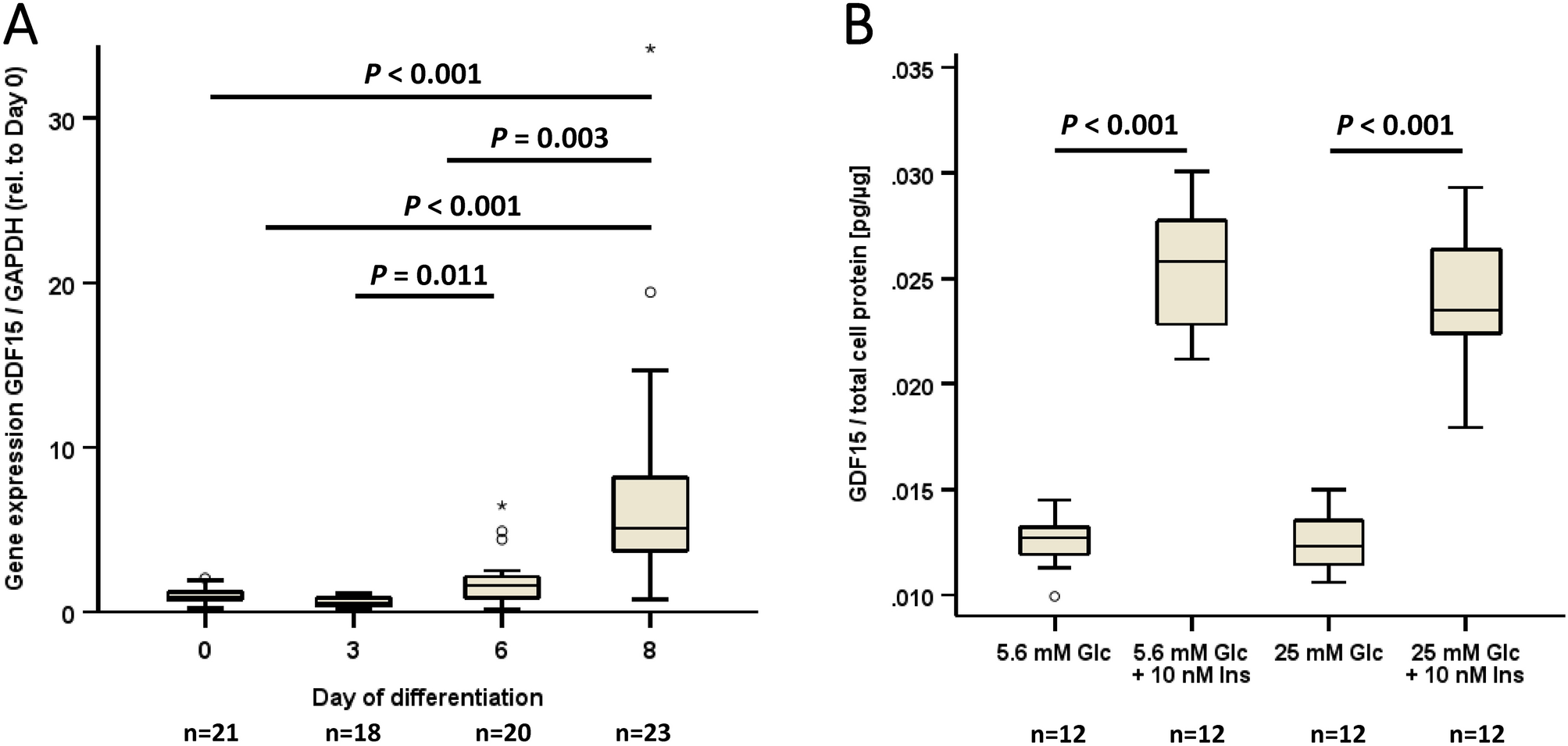

Expression of GDF15 mRNA and secretion of GDF15 protein in 3T3-L1 adipocytes. Panel A Upregulation of GDF15 mRNA expression by qPCR during the differentiation of 3T3-L1 pre-adipocytes (day 0) into mature adipocytes (day 8). The Kruskal-Wallis test was performed. Panel B Secretion of GDF15 protein into supernatants by ELISA is upregulated by insulin under normo- and hyperglycemic conditions. The Kruskal-Wallis test was performed.
