Fig. 11

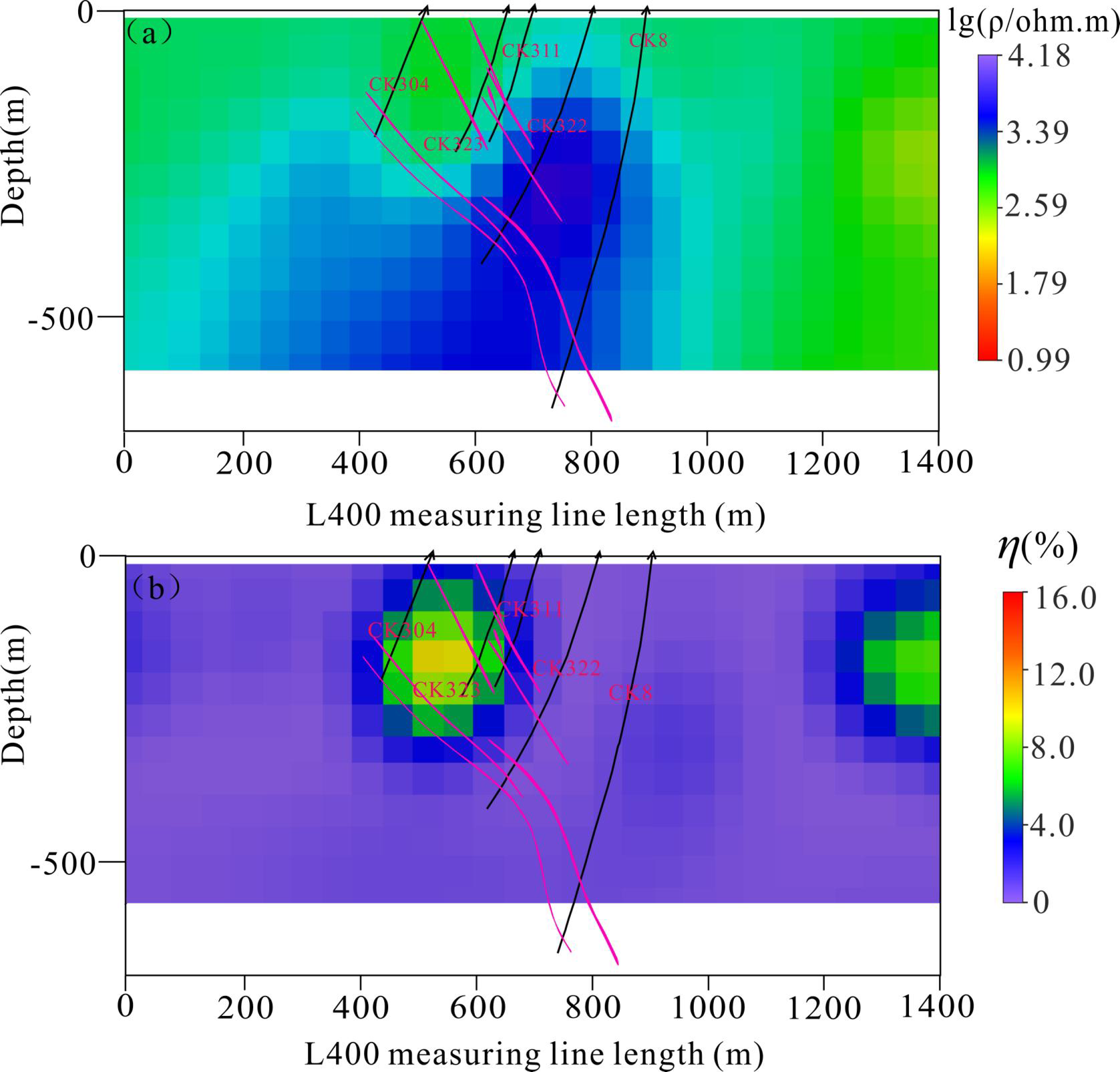

Composite profile of TDIP exploration on the L400 line in Huaniushan polymetallic mining area.. (a) L400 line inversion resistivity section. (b) L400 line inversion polarizability section. Borehole locations (black lines) and interpreted ore body locations (red lines) described in Fig. 10 are highlighted.
