Fig. 7

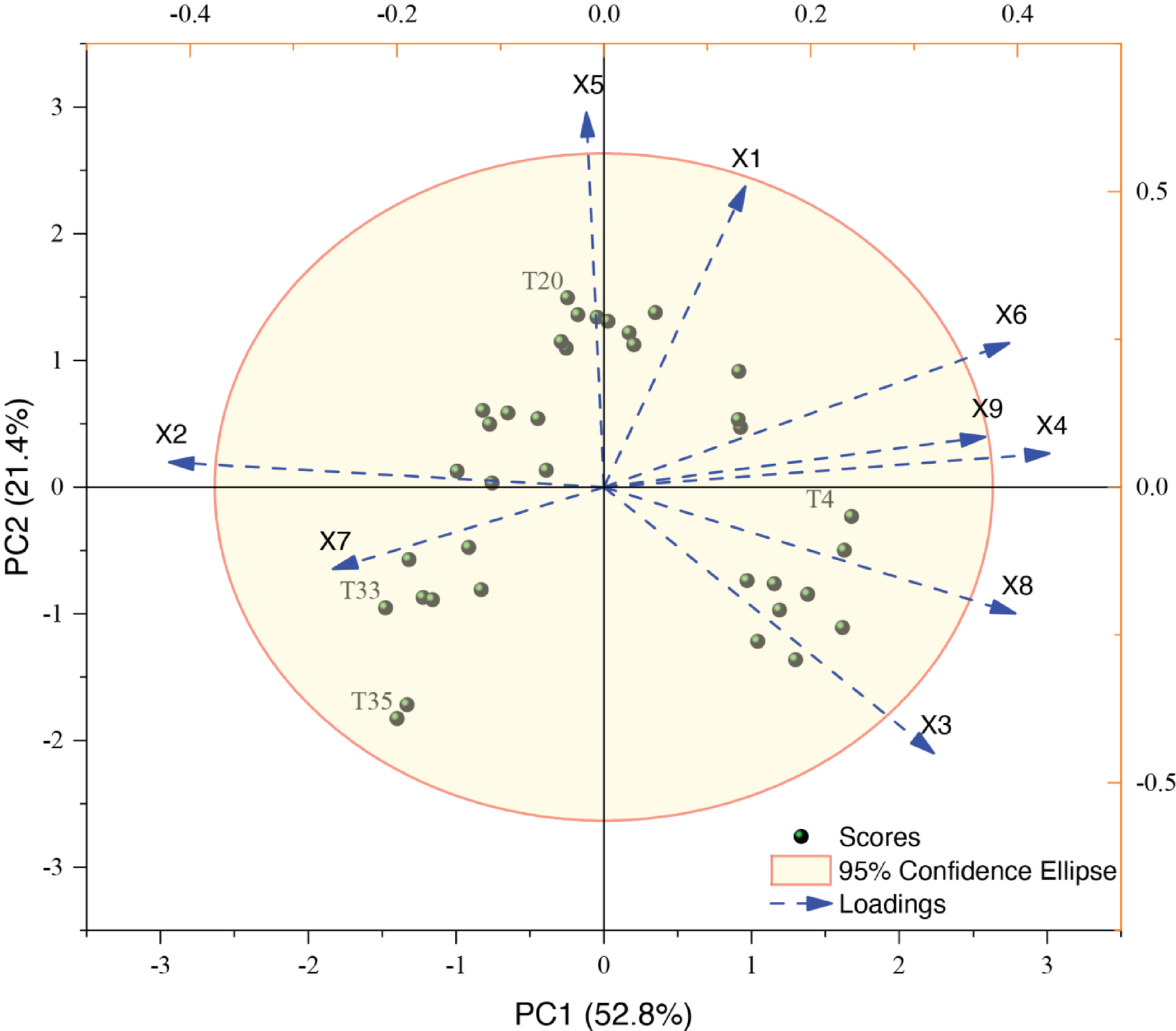

Principal component analysis of monitoring categories. PC1 & PC2: First and second principal components, with PC1 explaining 52.8% of the total variance. Green spheres: Sample scores representing individual observations in the reduced-dimensional space. Red elliptical boundary: 95% confidence ellipse for group-wise data distribution. Blue dashed arrows: Variable loadings indicating the contribution of original features to each principal component (arrow length proportional to loading magnitude).
