Fig. 18

From: Computational optimization of 3D printed bone scaffolds using orthogonal array-driven FEA and neural network modeling

Fig. 18

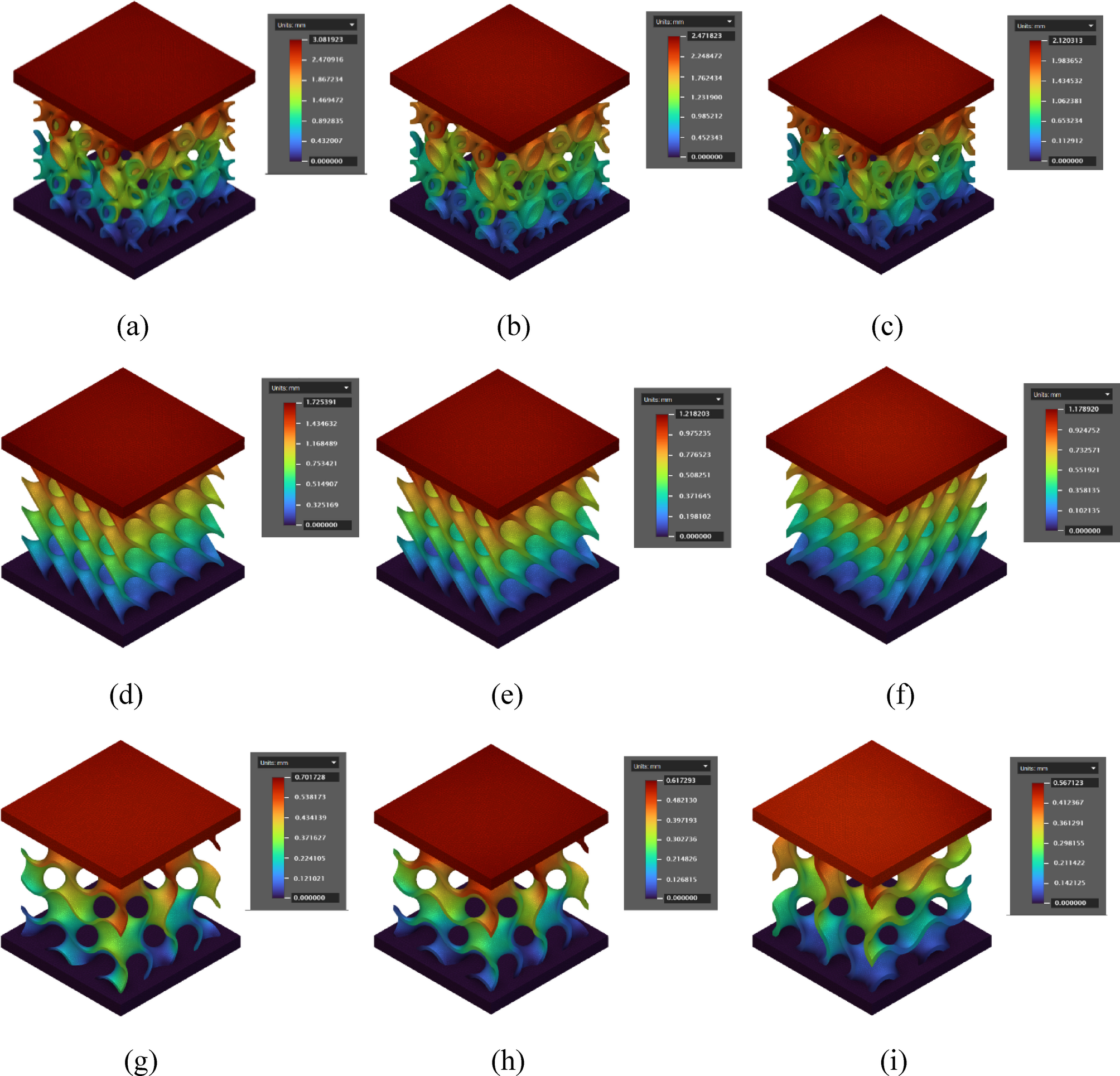

Finite element displacement analysis of various lattices under different wall thickness and loading conditions simulated using nTop (version 5.17.2; https://www.ntop.com/); (a) Lidinoid 1 mm 3kN; (b) Lidinoid 1.5 mm 6kN; (c) Lidinoid 2 mm 9kN; (d) Diamond 1 mm 3kN; (e) Diamond 1.5 mm 6kN; (f) Diamond 2 mm 9kN; (g) Gyroid 1 mm 3kN; (h) Gyroid 1.5 mm 6kN; (i) Gyroid 2 mm 9kN.
