Fig. 10
From: Evaluating climate shifts and drought regions in the central Indian river basins

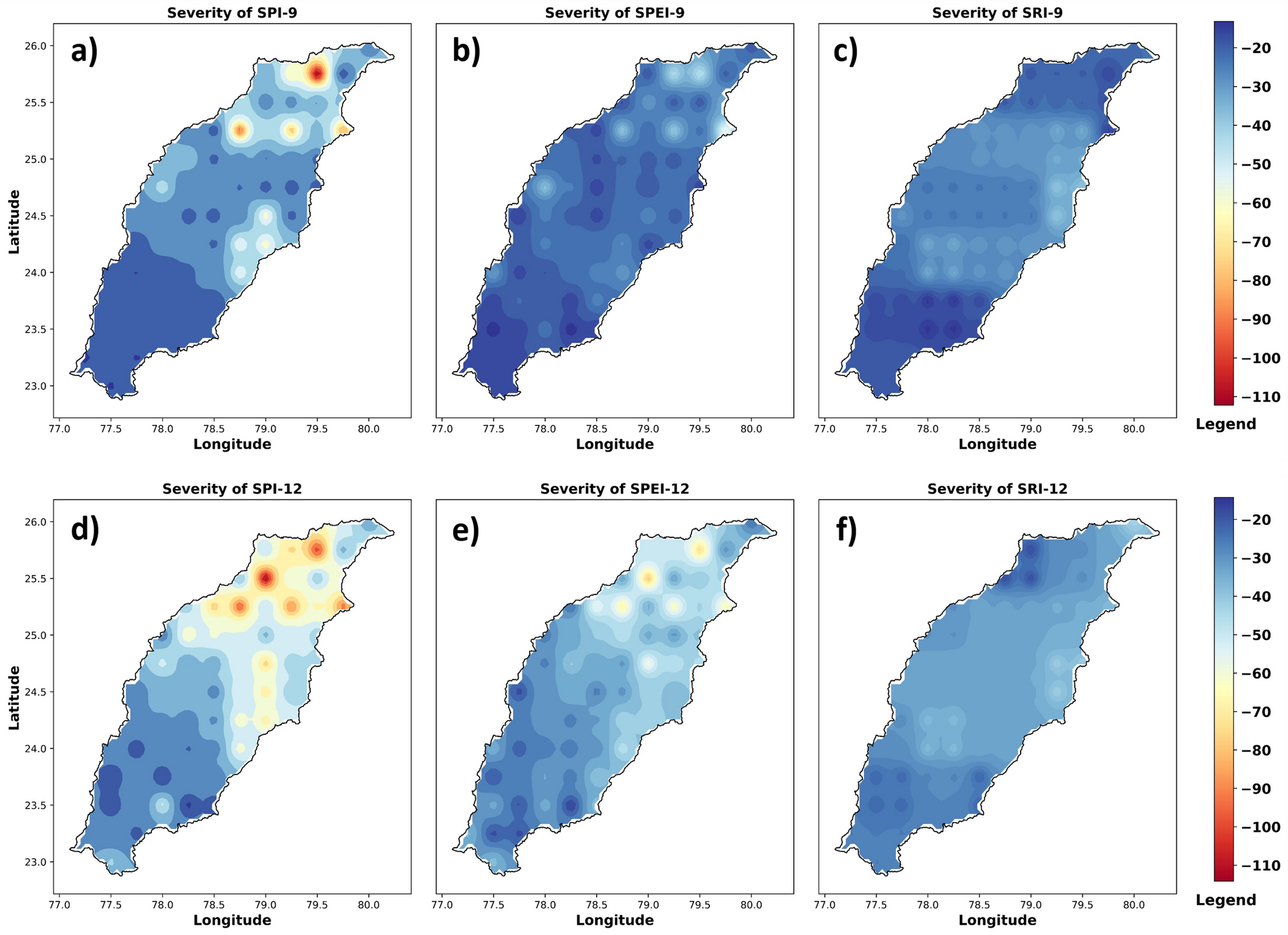

Spatial distribution of severity of drought across Betwa river basin based on multiple drought indices at 9 and 12-months. Top row: severity of drought events at 9-month timescale using (a) SPI-9, (b) SPEI-9, and (c) SRI-9. Bottom row: severity of drought at 12-month timescale using (d) SPI-12, (e) SPEI-12, and (f) SRI-12. Color scales indicate the severity of drought, with darker blue representing shorter drought severity and red representing longer drought severity45.
