Fig. 5

From: Maturity related metabolomic analysis of Balanites aegyptiaca fruits with in vitro and in silico cytotoxicity evaluation

Fig. 5

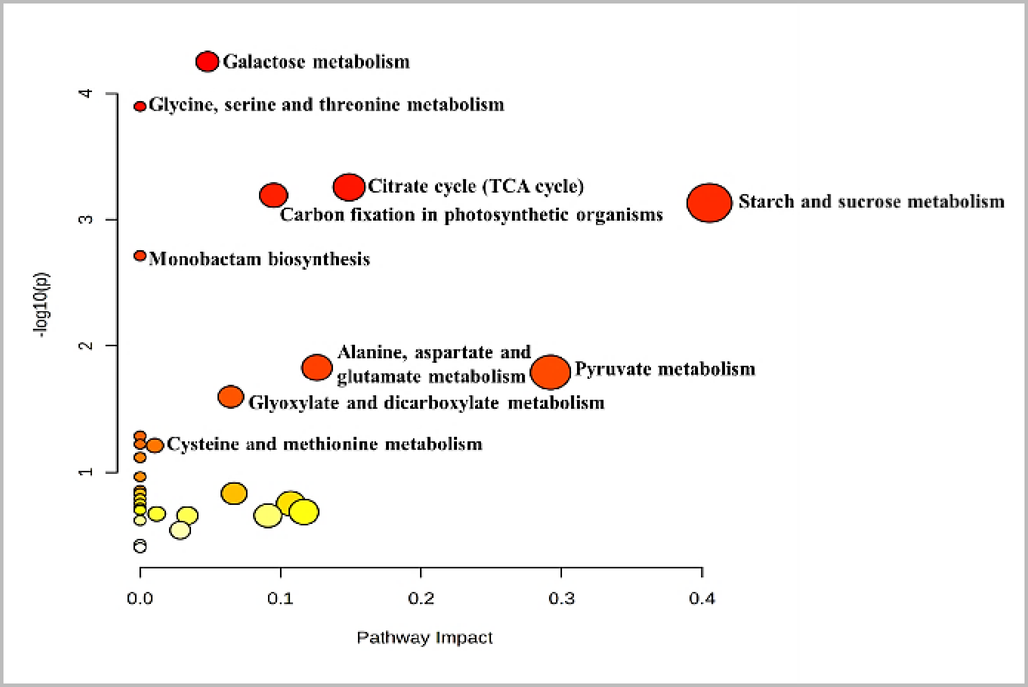

Metabolic pathways in B. aegyptiaca that are significantly altered between mature and immature fruit based on KEGG database (www.kegg.jp/kegg/kegg1.html). The dark red circles indicate the pathways that were significantly affected. As the p value increases, the color progressively fades, whereas the larger the circle size, the greater the pathway’s influence.
