Fig. 27
From: Study on the influence of blasting on the structural stability of newly-built and adjacent tunnels

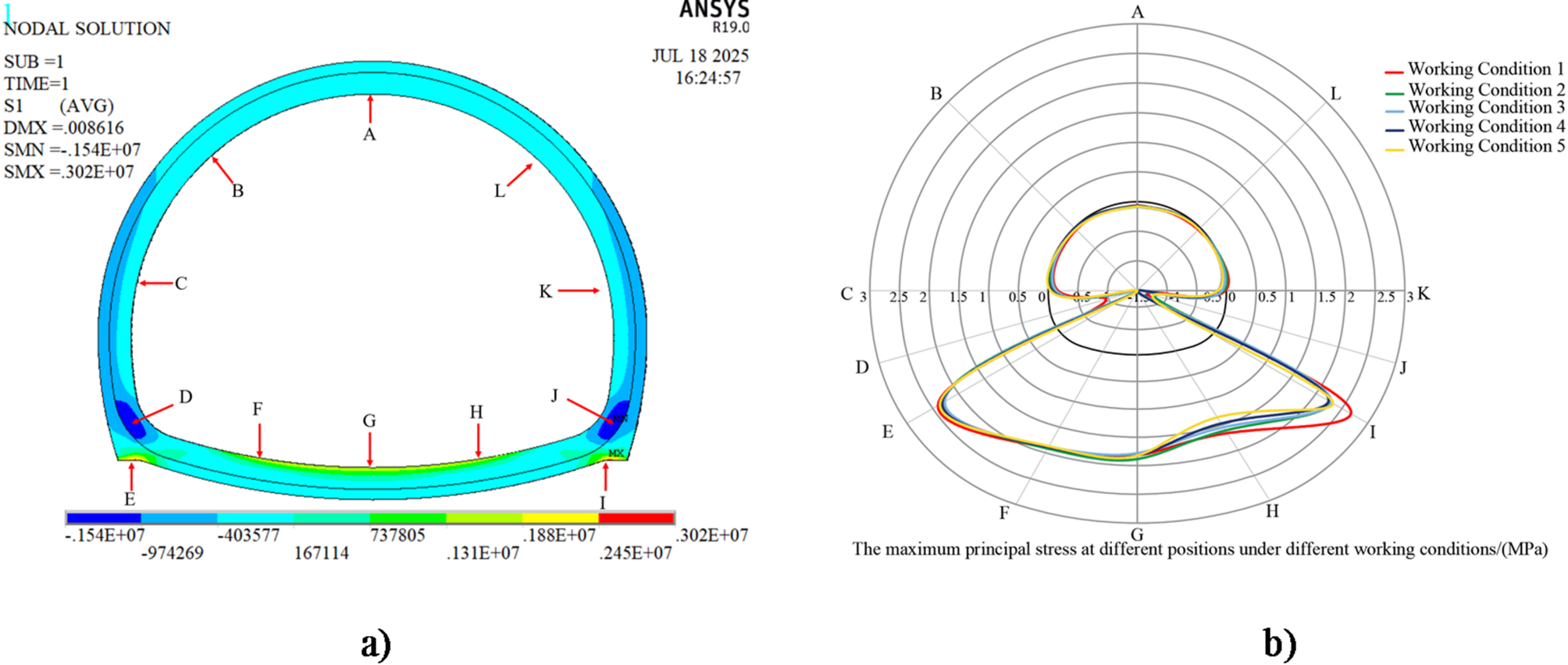

Finite element calculation results of structural stress in the adjacent tunnel: (a) Structural stress cloud diagram, (b) Stress diagram of the characteristic position of each working condition.
