Fig. 1
From: Optimized SPR-PCF sensor for sucrose detection inspired by vertical pupil geometry

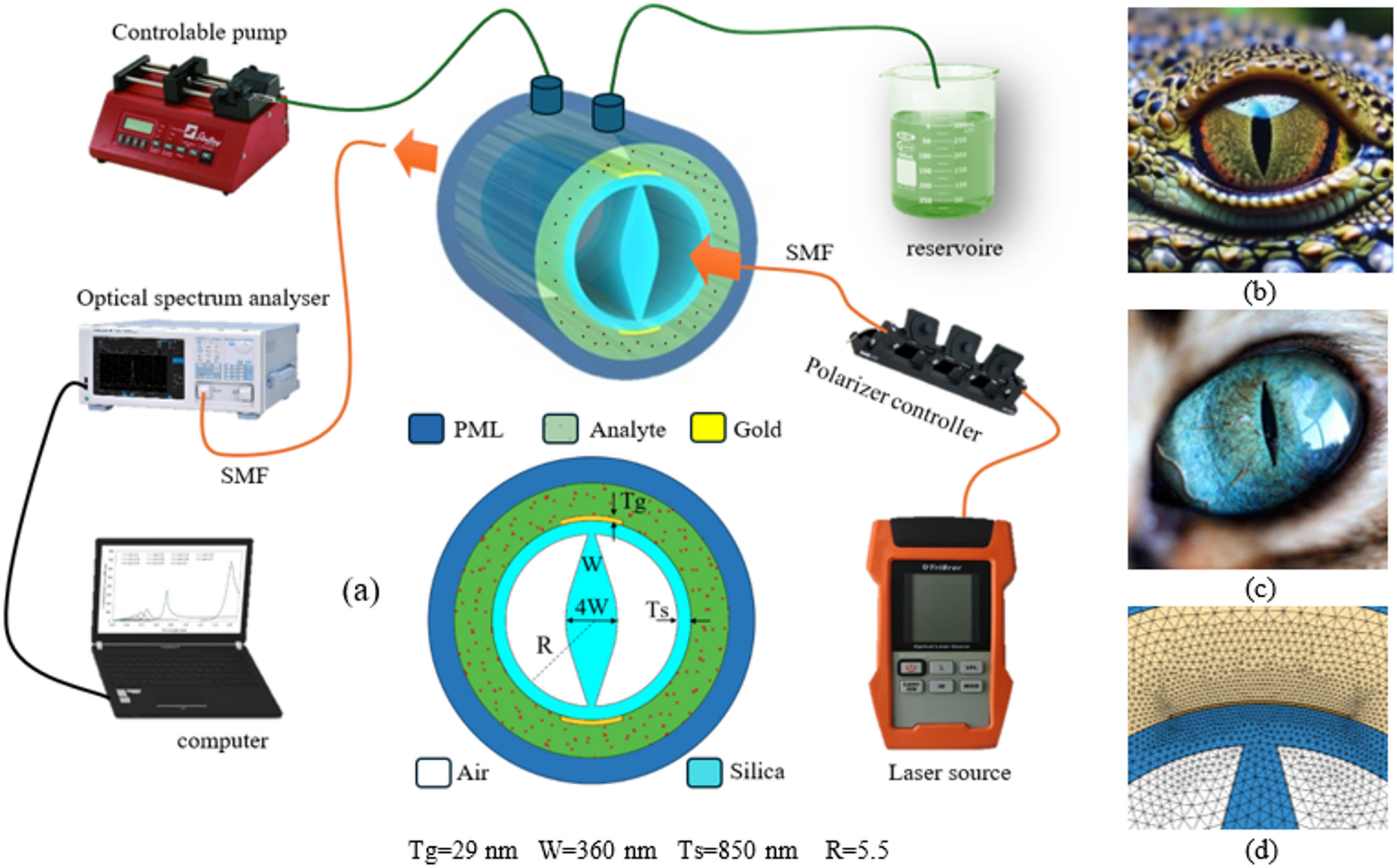

(a) Proposed schematic diagram of the SPR-PCF sensor inspired by vertical pupil geometry and 2-dimensional illustration of the proposed sensor (b) vertical slit pupil in alligators (c) vertical slit pupil in cats (d) FEM-based mesh.
