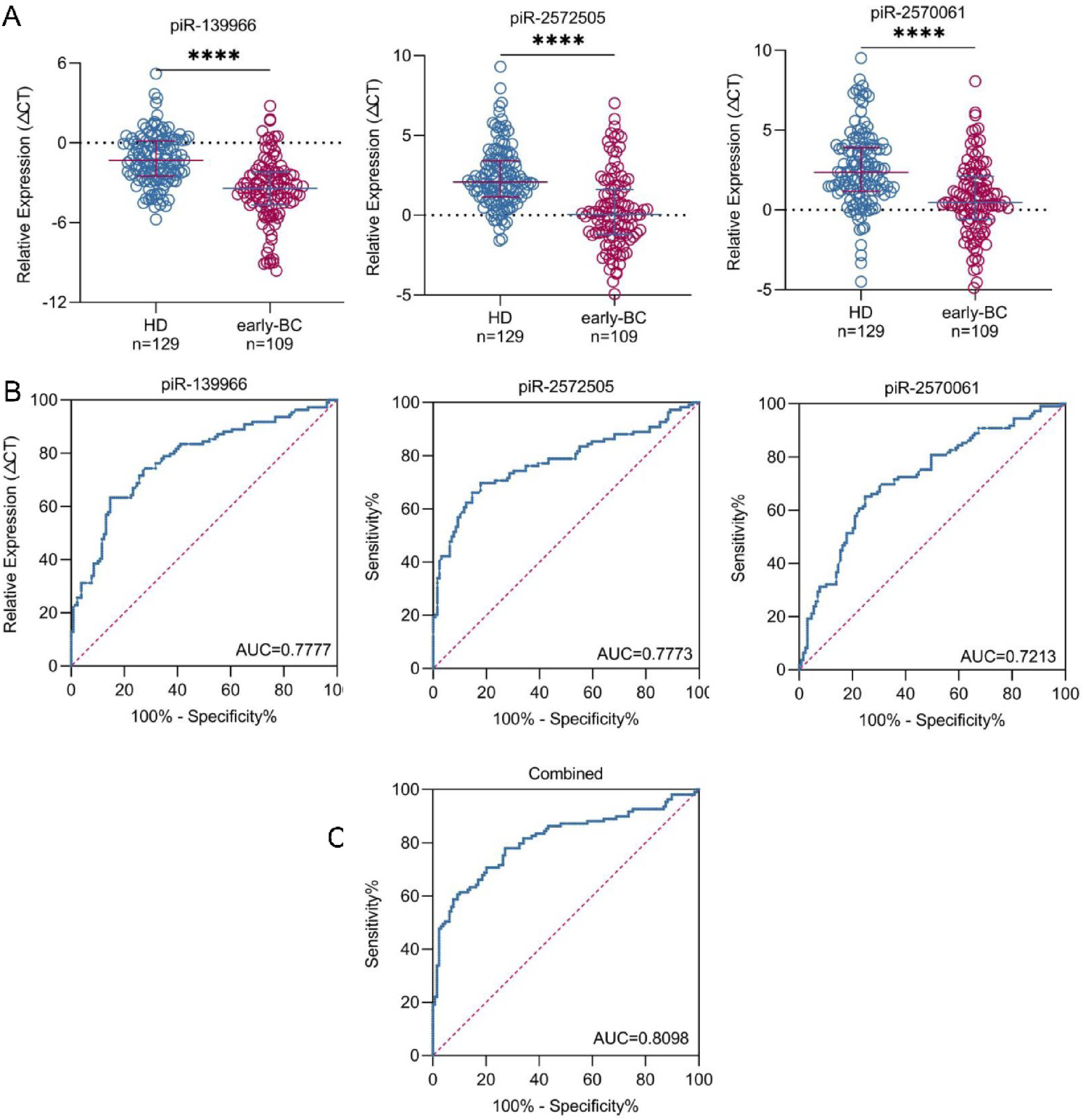

Fig. 3
From: Machine learning model for early diagnosis of breast cancer based on PiRNA expression with CA153
Serum tri-piRNA signature as biomarkers for early diagnosis of BC. (A) The differential expressions of serum piR-139966, piR-2572505, and piR-2570061 were analyzed in early-stage BC patients compared with health donors. The AUCs of serum piR-139966, piR-2572505, and piR-2570061 were 0.7777, 0.7773, and 0.7213, respectively (B). The diagnostic performance for their combination demonstrated an AUC of 0.8098 (C). Mann-Whitney U test; ****P < 0.0001.
