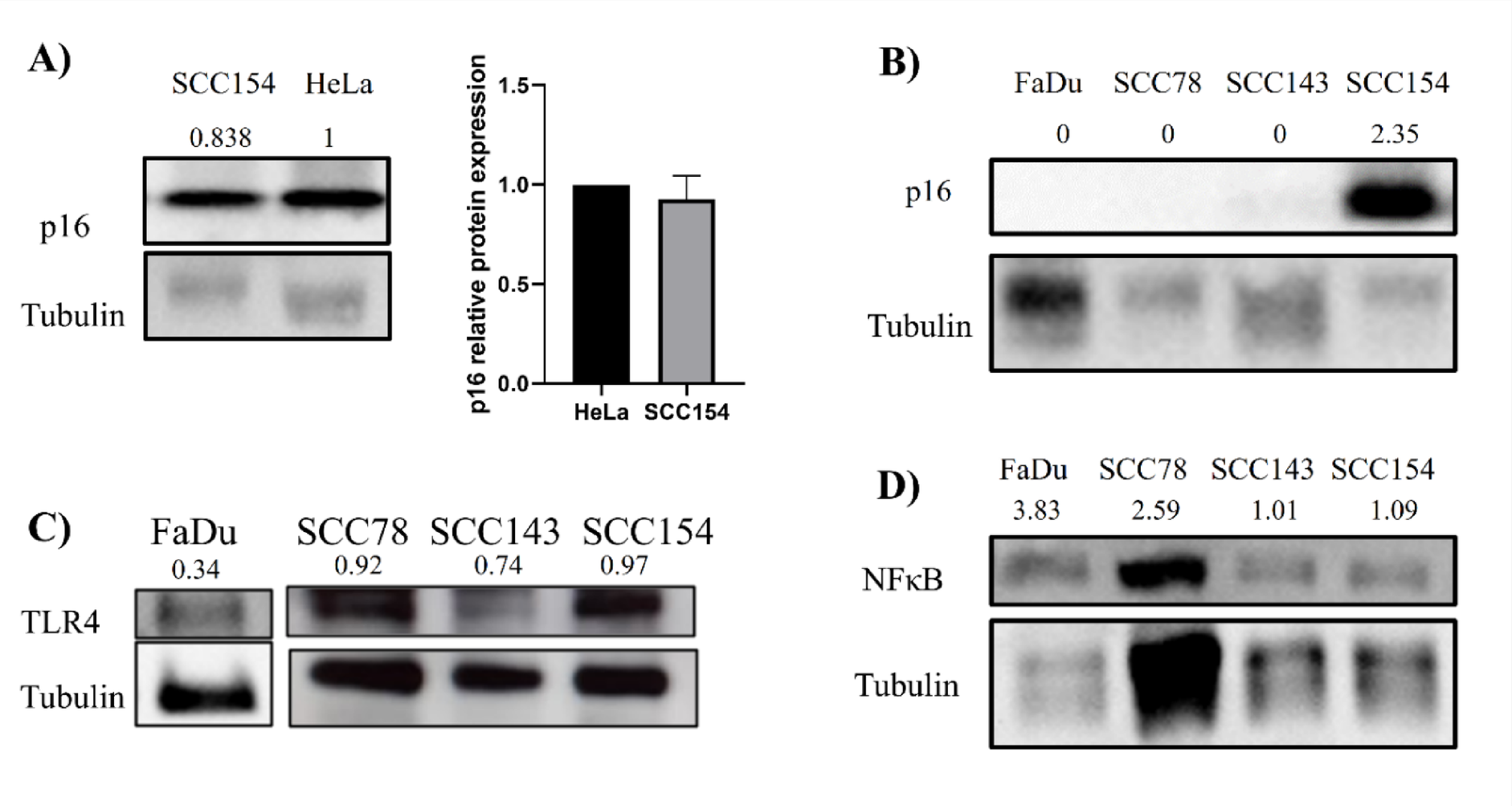

Fig. 1
From: The antitumor effect of tlr4 inhibition in head and neck cancer cell lines
Detection of p16, TLR4, and NFκB expressions in the cell lines studied. (A) p16 protein expression in the HeLa and SCC154 cell lines. (B) p16 expression in the FaDu, SCC78, SCC143, and SCC154 cell lines. (C) TLR4 and tubulin expression in the FaDu, SCC78, SCC143, and SCC154 cell lines. FaDu western blot was made in a different gel from the other cell lines SCC78, SCC143, and SCC154. (D) NFκB and tubulin expression in FaDu, SCC78, SCC143, and SCC154 cell lines.
