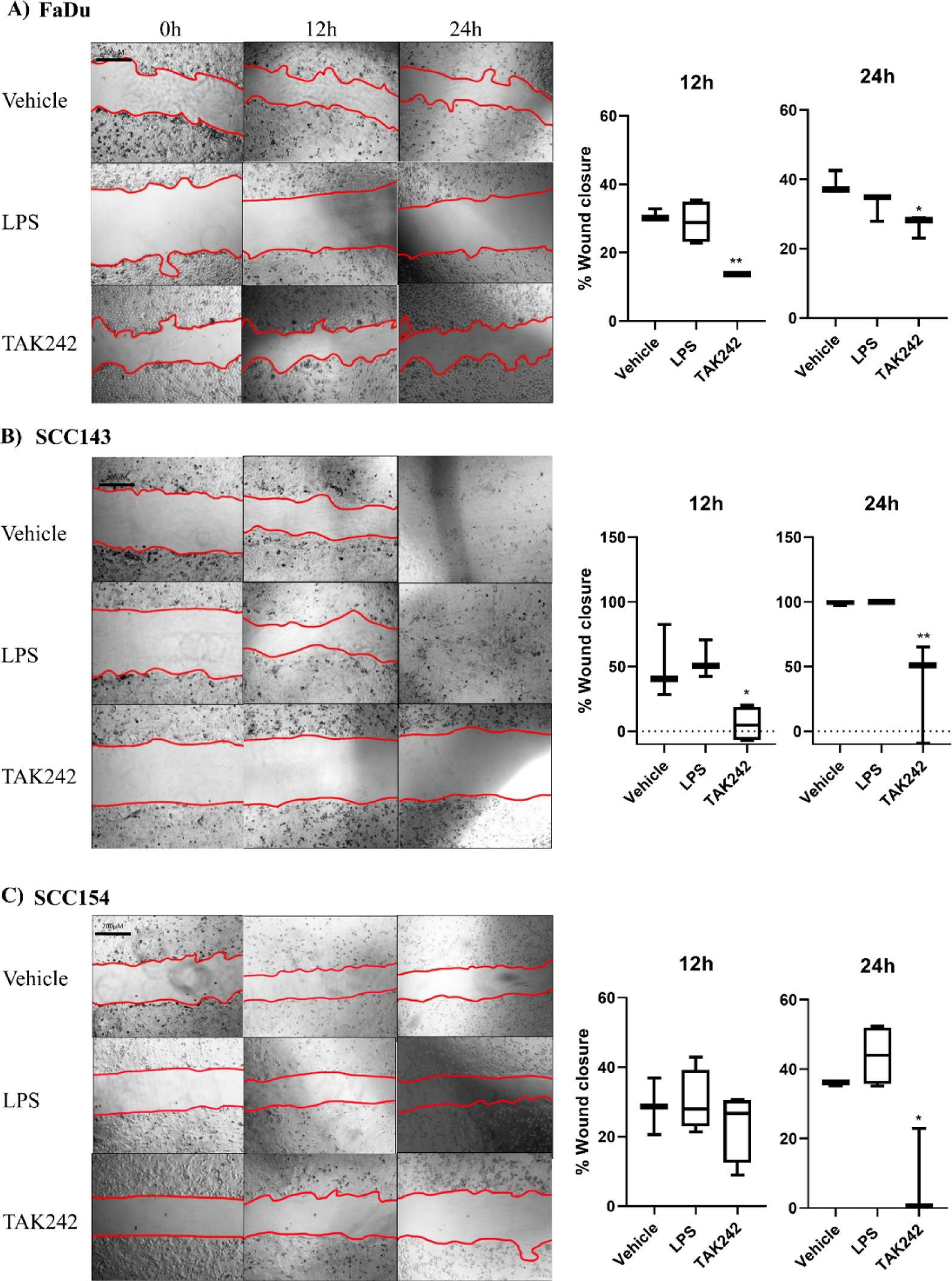

Fig. 4
From: The antitumor effect of tlr4 inhibition in head and neck cancer cell lines
Reduction in the migration of HNC cells after TLR4 inhibition. (A) FaDu, (B) SCC143, and (C) SCC154. The cells were seeded at high confluence in a 24-well plate. After mitomycin C treatment for 2 h, a wound was made in each well. The cells were treated with 10 µg/mL LPS or 47.42 µM TAK242 in FaDu cells, 61.79 µM in SCC143 cells, or 72.97 µM in SCC154 cells. One representative experimental image at 0 h, 12 h, and 24 h is presented on the left, and the empty gap area between the red lines is indicated. The graphics show the percentage of filled gap area after 12 h and 24 h relative to the 0 h time point. The results are from at least five independent replicates. *, p < 0.05; **, p < 0.01.
