Fig. 5 | Scientific Reports

Fig. 5

From: The record of Scalichnus ichnofabrics in ancient fluvial settings and its paleoecological significance

Fig. 5

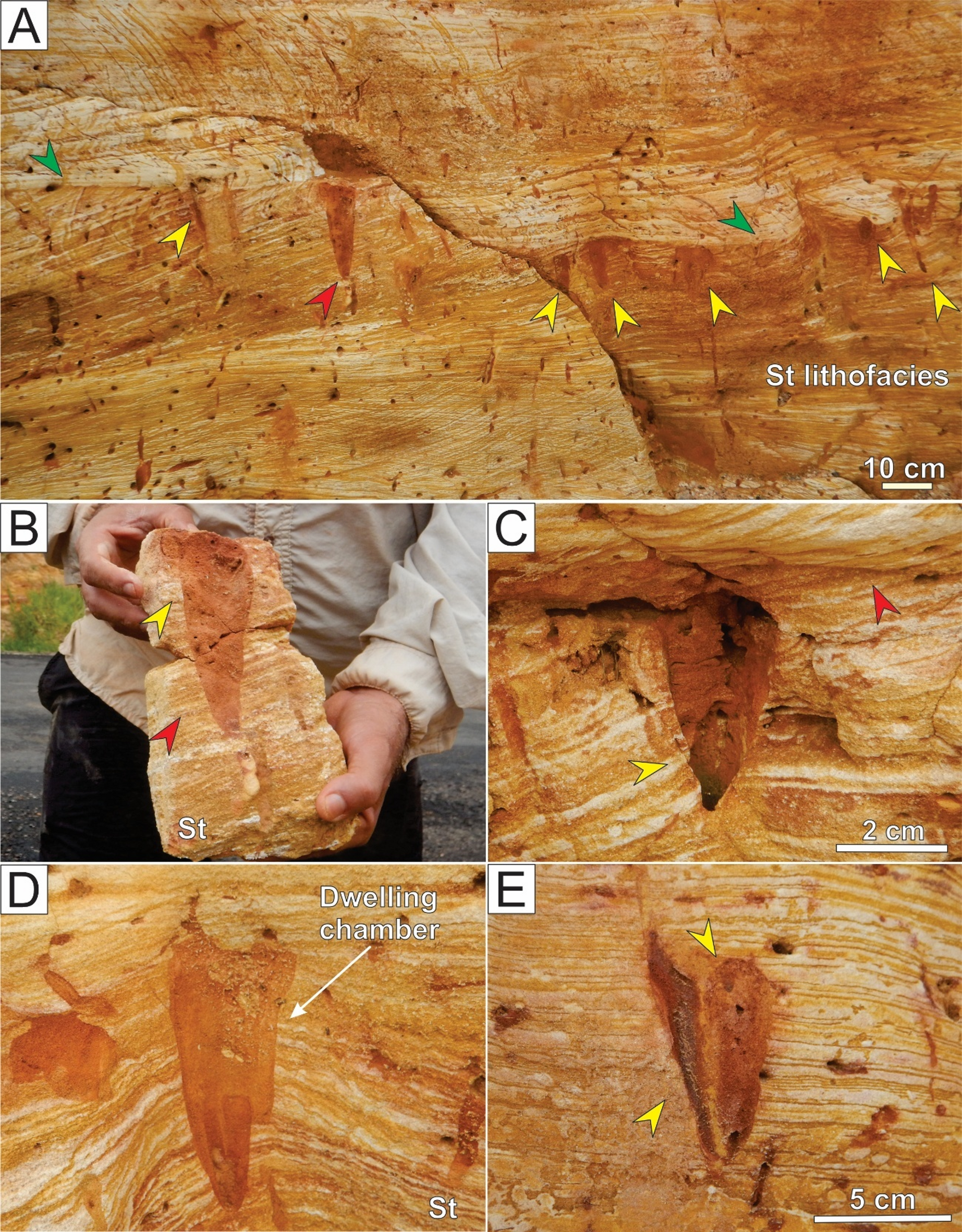

(A) Scalichnus isp. cross-cutting St facies. Note the diverse occurrence associated with the same sandbar (yellow arrowhead). Red arrow indicates the occurrence of a large Scalichnus. Note the surface that limits the occurrence of Scalichnus (green arrowhead). (B–D) Detail of dwelling chambers (yellow arrows) cross-cutting the St facies (red arrowhead). (E) Thick-lined Scalichnus showing sharp contact with the substrate (yellow arrowhead).
