Fig. 2 | Scientific Reports

Fig. 2

From: Physiological response of safflower to water deficit and genome-wide identification of its NAC transcription factor family

Fig. 2

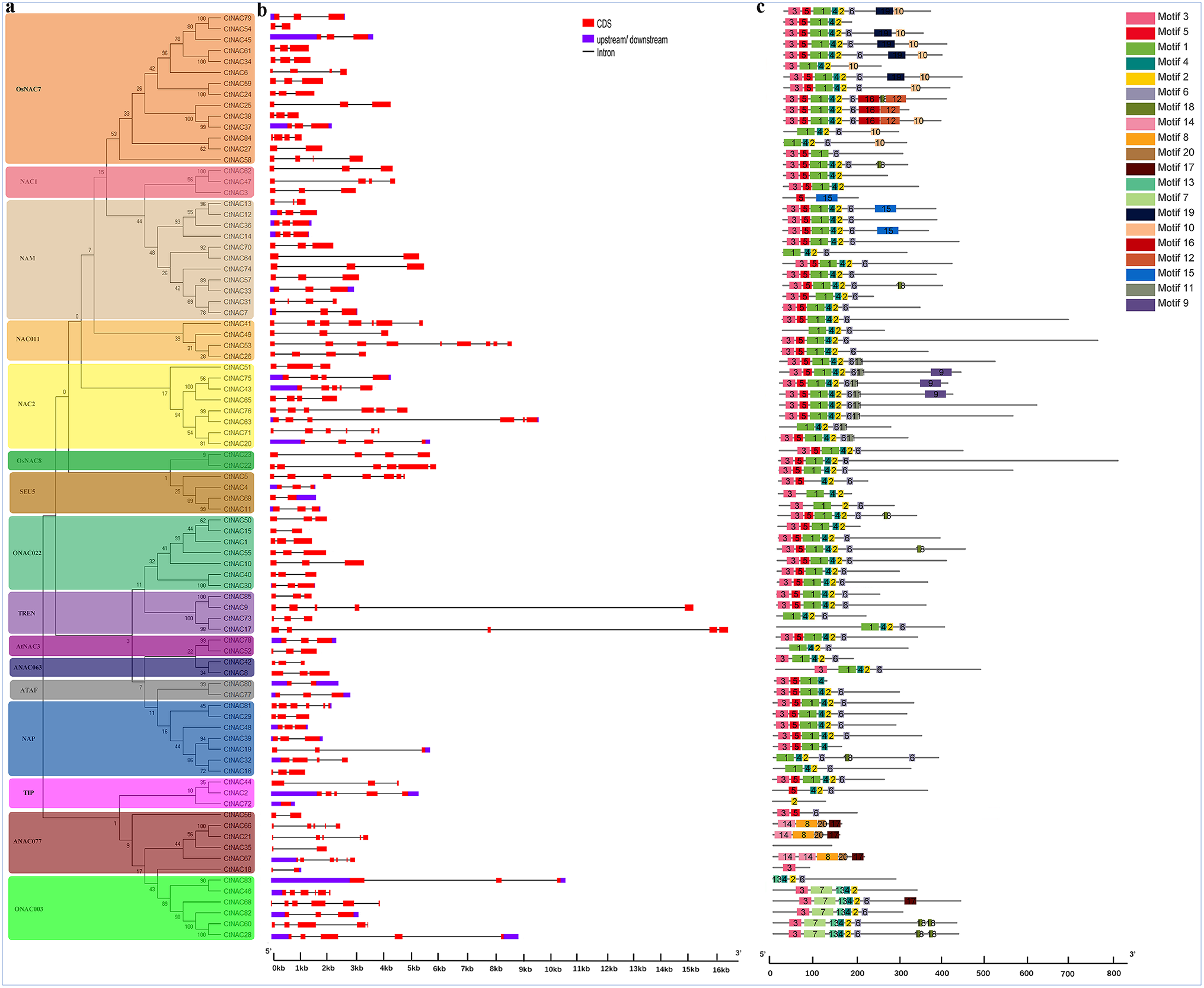

Gene structure and conserved motif distribution of CtNAC gene family. The phylogenetic tree was constructed by MEGA-X using the NJ method. The phylogenetic subfamilies are marked with different color backgrounds (a). Gene structure analysis (b). The red color indicates the exons, the purple color indicates the untranslated 5′and 3′ regions, and black lines indicate the introns. Conserved motif composition analysis (c). The conserved motifs of safflower were represented by boxes. Each motif is represented by a number in the colored box.
