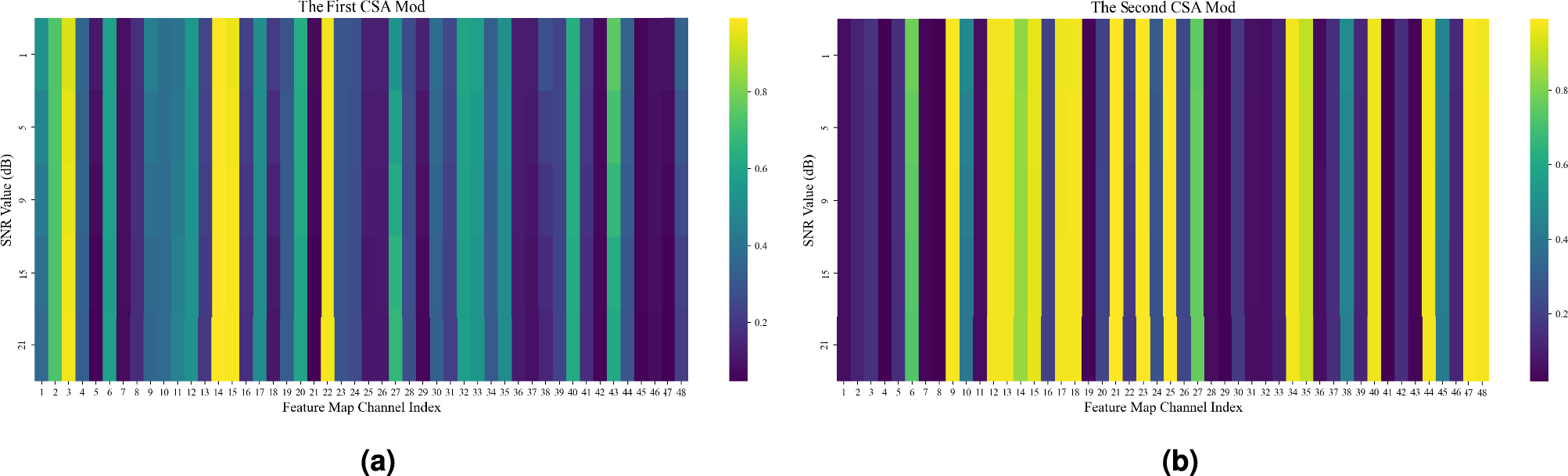

Fig. 10

The scaling coefficients of the first 48 channels in the encoder of STARJSCC on AWGN channel (CBR = 1/12). (a) the scaling coefficients of the first CSA Mod. (b) the scaling coefficients of the second CSA Mod. The scaling coefficients of each channel are evaluated on the Kodak dataset.
