Fig. 5

From: earEOG via periauricular electrodes to facilitate eye tracking in a natural headphone form factor

Fig. 5The alternative text for this image may have been generated using AI.

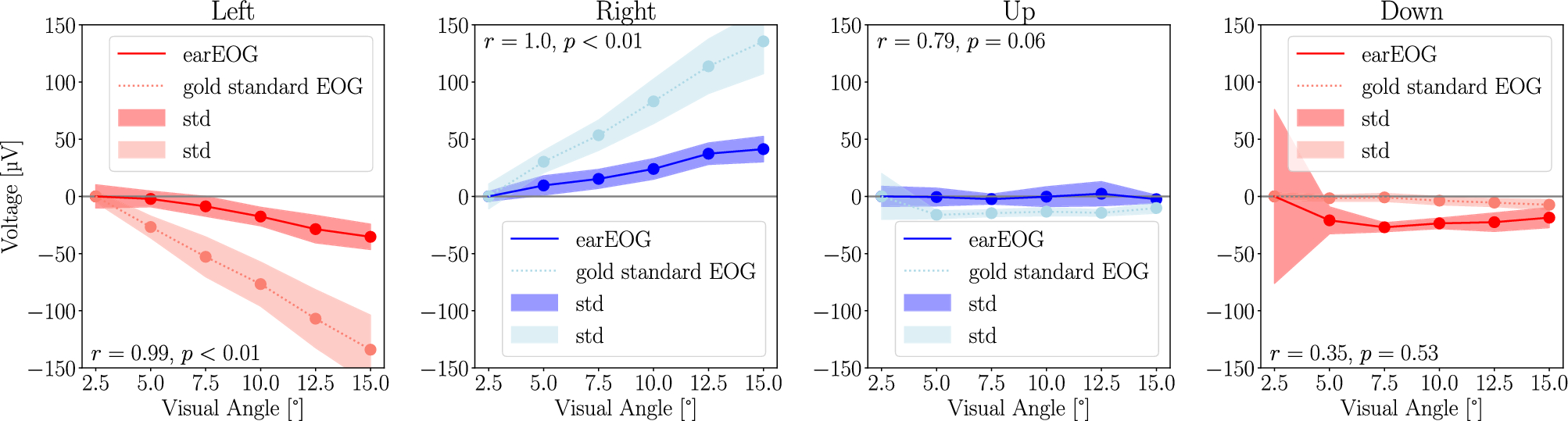

Voltage differences for each visual angle and direction of gaze when performing saccades using earEOG and gold-standard EOG. Scatter plots show the mean voltage differences for each visual angle and direction of gaze using earEOG (red/blue) and gold-standard EOG (coral/lightblue). The filled areas around the lines show the standard deviation.
