Fig. 14
From: Computer-aided design of piezoelectric systems operating as machine assemblies or subassemblies

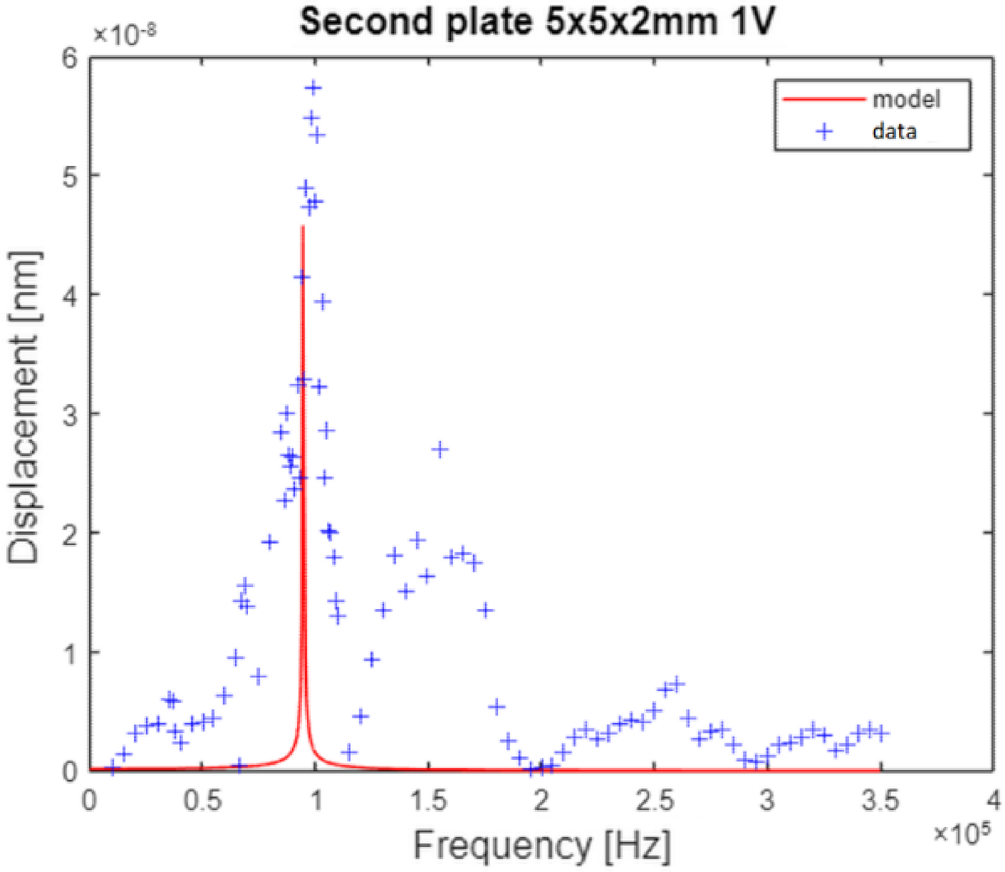

The response diagram of the synthesized model on the assumption of real geometrical parameters and a series of measurement points, which were determined through an experimental study of a real piezoelectric system comprising a transducer with dimensions of 5 × 5x2 mm.
