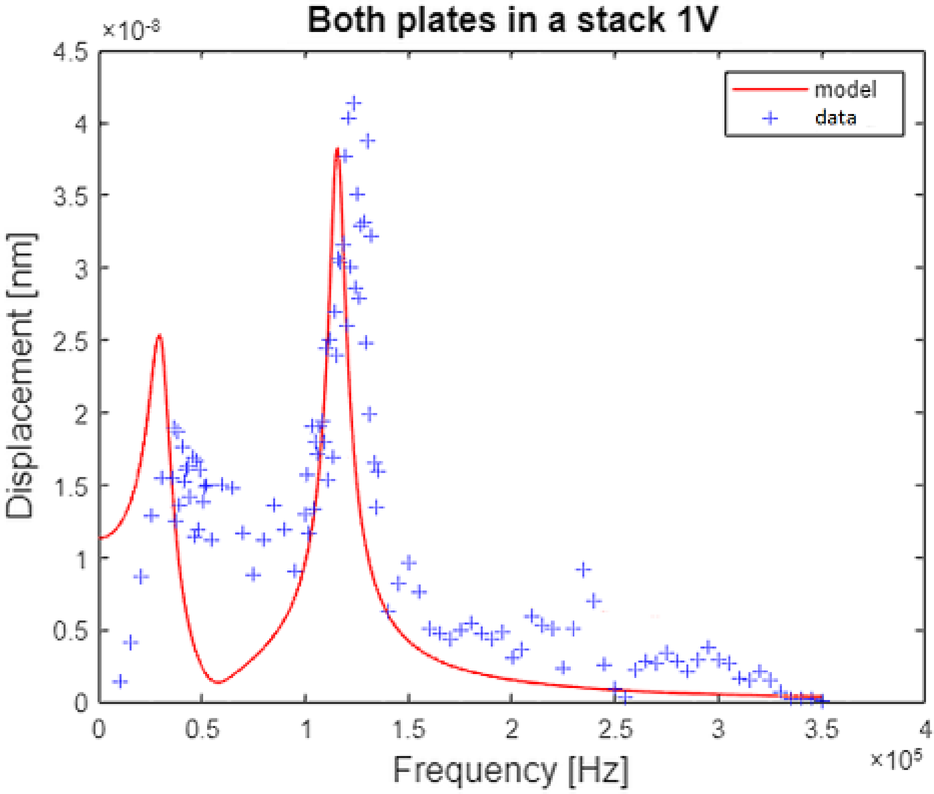

Fig. 15
From: Computer-aided design of piezoelectric systems operating as machine assemblies or subassemblies
The response diagram of the synthesized model on the assumption of real material properties and a series of measurement points, which were determined through an experimental study of a real piezoelectric system comprising of both transducers tested previously.
