From: Effect of gamma radiation on in vitro morphogenesis, anatomy and DNA polymorphism of Moringa concanensis Nimmo

Fig. 4The alternative text for this image may have been generated using AI.Fig. 4The alternative text for this image may have been generated using AI.

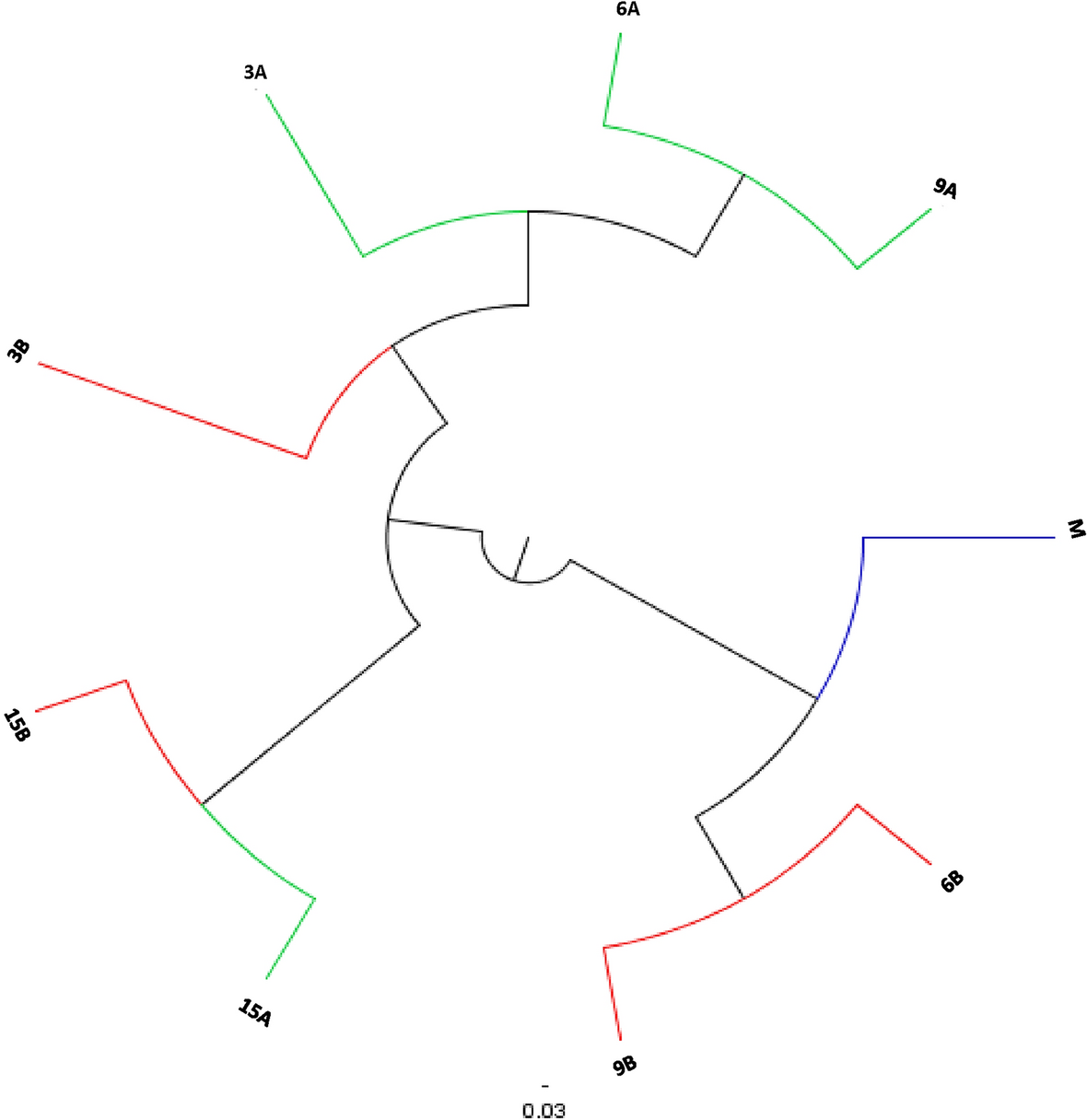

(A) Heatmap of primer binary data (0 and 1) generated from SCoT, CBDP, and ISSR primers, untreated and after 133Ba and 57Co treatment of in vitro generated shoots; (B) Cluster analysis in vitro regenerated Moringa concanensis shoot (untreated and treated with mutagens). Genotypes: M—Mother plant; 3A—3 min Barium treatment; 6A—6 min Barium treatment; 9A—9 min Barium treatment; 15A—15 min Barium treatment; 3B—3 min Cobalt treatment; 6B—6 min Cobalt treatment; 9B—9 min Cobalt treatment; 15B—15 min Cobalt treatment.
