Fig. 8

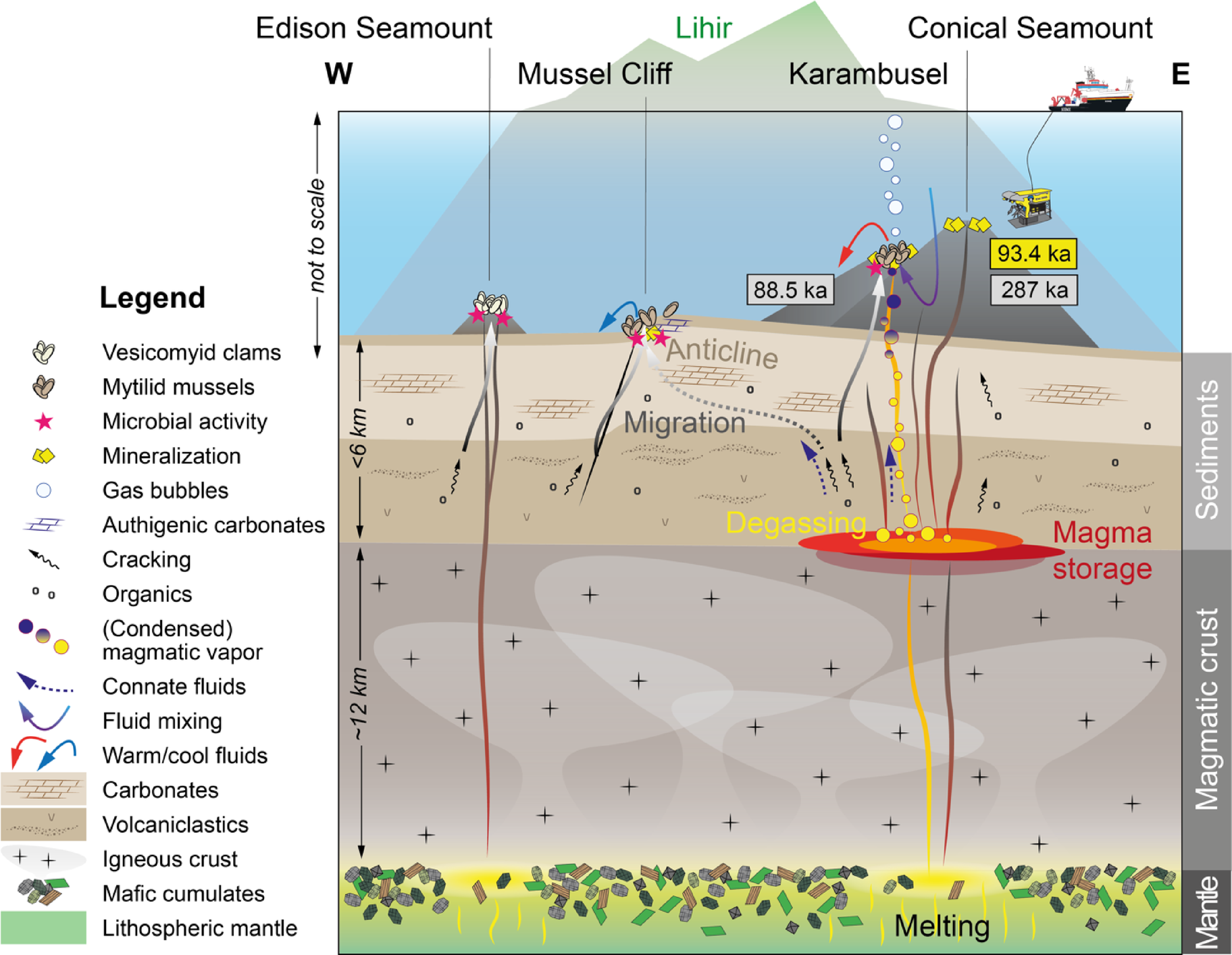

Sketch of the volcanic, venting and seepage systems across Edison Seamount, Mussel Cliff, Karambusel and Conical Seamount (see Fig. 1A for the approximate position of the profile). Volcanic Ar-Ar ages in grey boxes, U-Th ages of sulfides in the yellow box.
