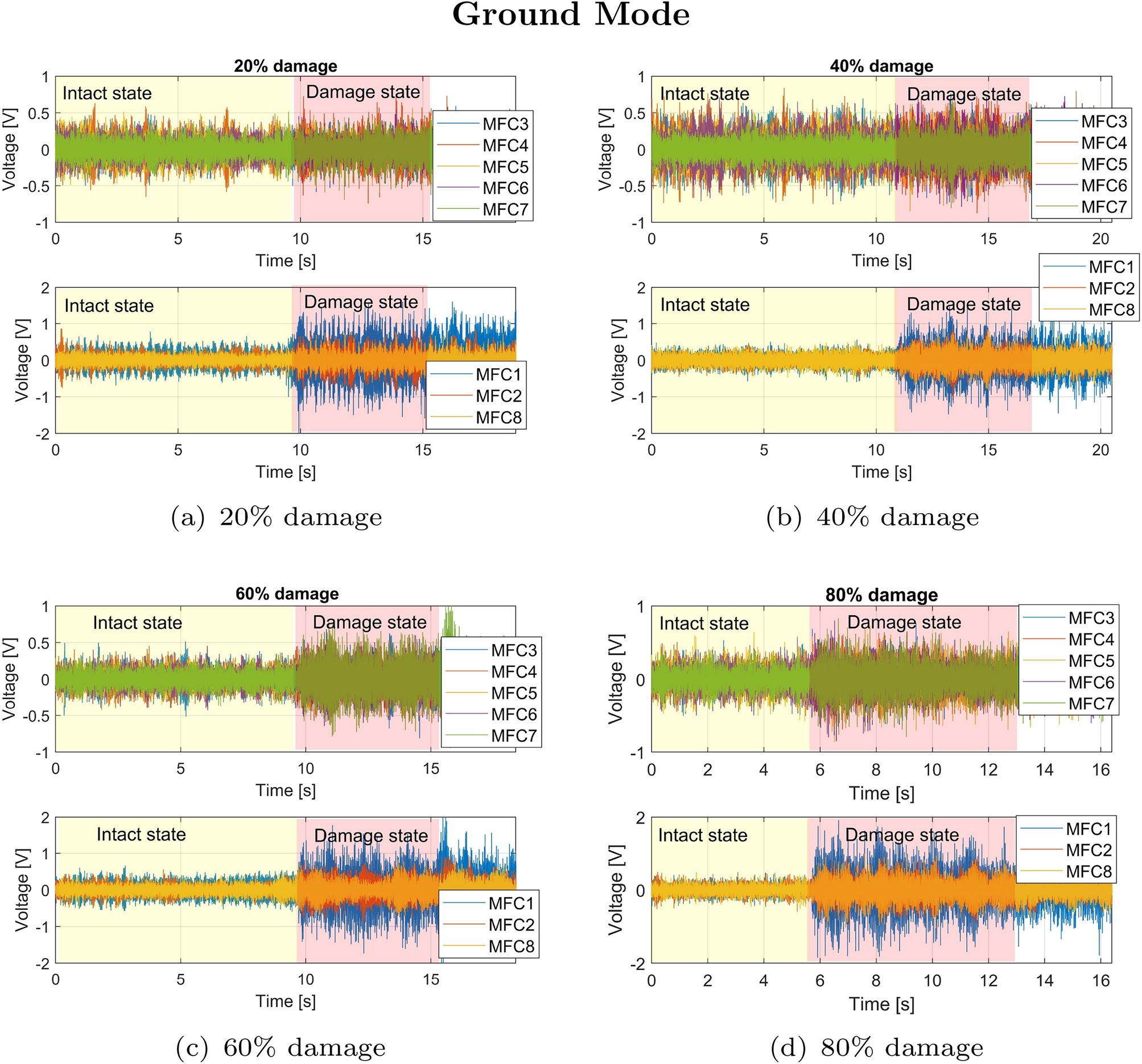

Fig. 5
From: Structure analysis in an octocopter using piezoelectric sensors and machine learning
Voltage generated by macro-fiber composites located on each arms during Ground Mode test by various level of damage of the electrical motor M1 equal (a) 20%, (b) 40%, (c) 60%, (d) 80%.
