Fig. 1
From: Winding fault detection based on current information of induction motors

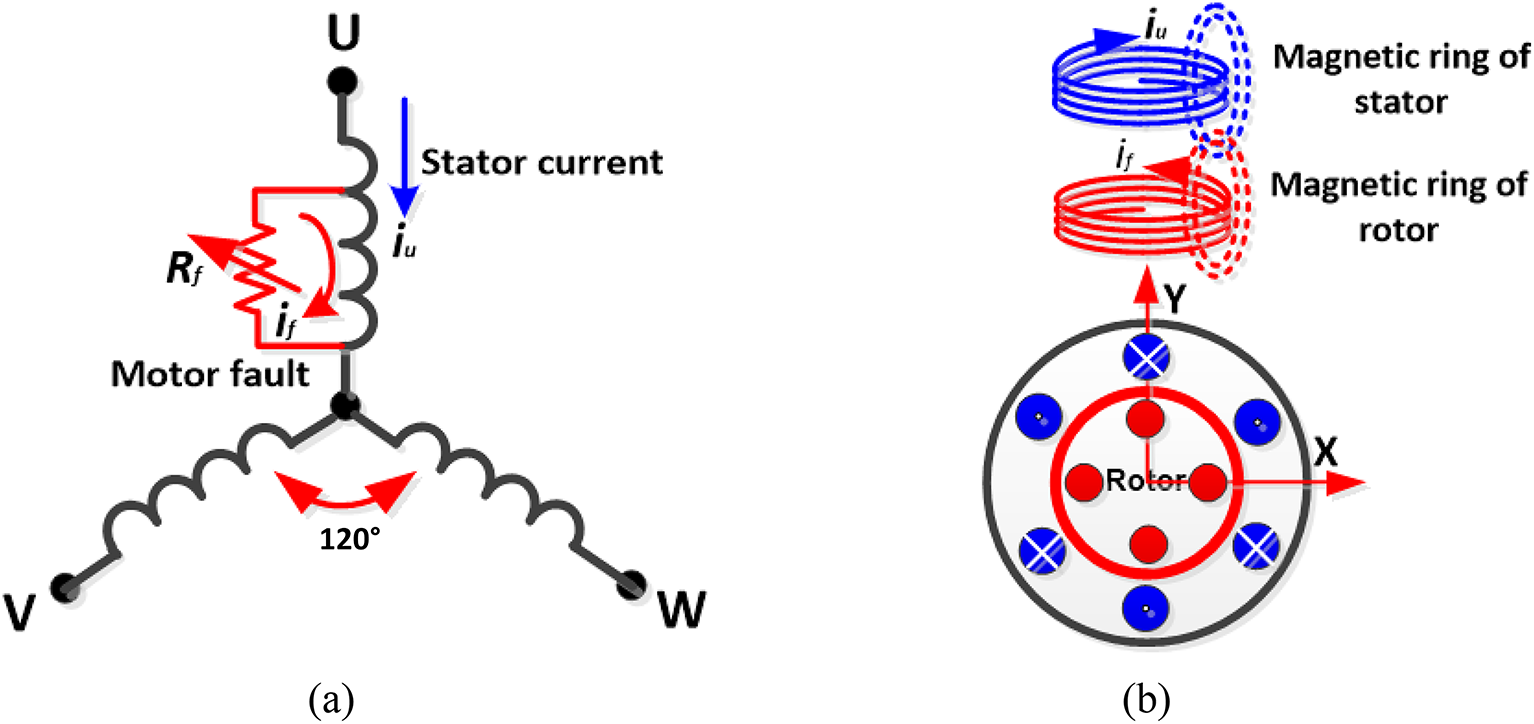

Models of the stator and rotor in a induction motor; (a) Stator model with winding fault, (b) Rotor model with the coupled magnetic fields.
