Fig. 9
From: Ternary atomized Hollow carbon spheres for high-performance symmetric supercapacitors

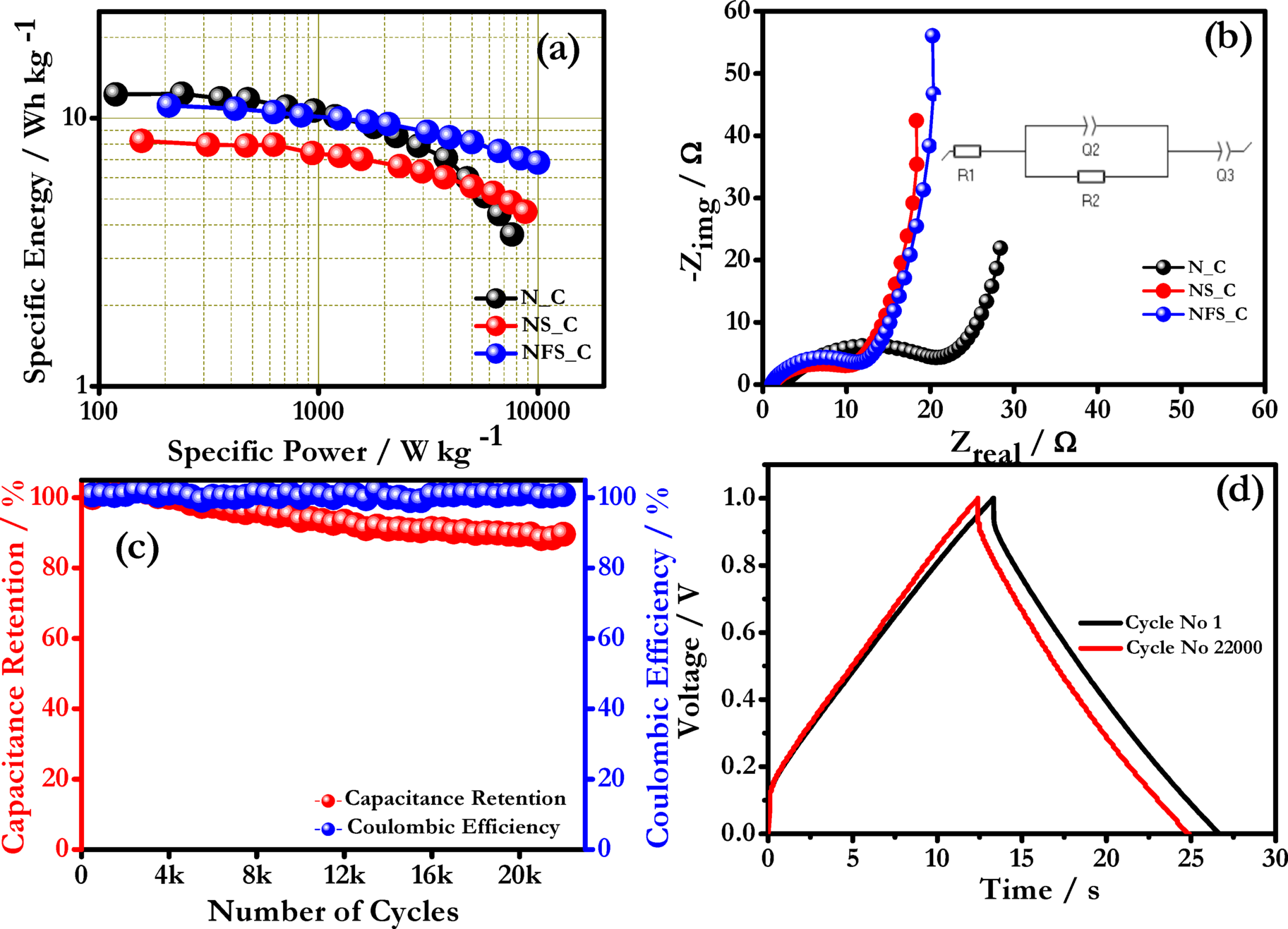

a Ragone plot of the devices. b Nyquist plot comparing the impedance of the devices, c capacitance retention and coulombic efficiency plot for NSF_C sample. d Charging and discharging curves at 1st and 22,000th cycles.
