Fig. 5
From: Spondias pinnata mediated silver nanoparticles with antibiofilm and catalytic potential

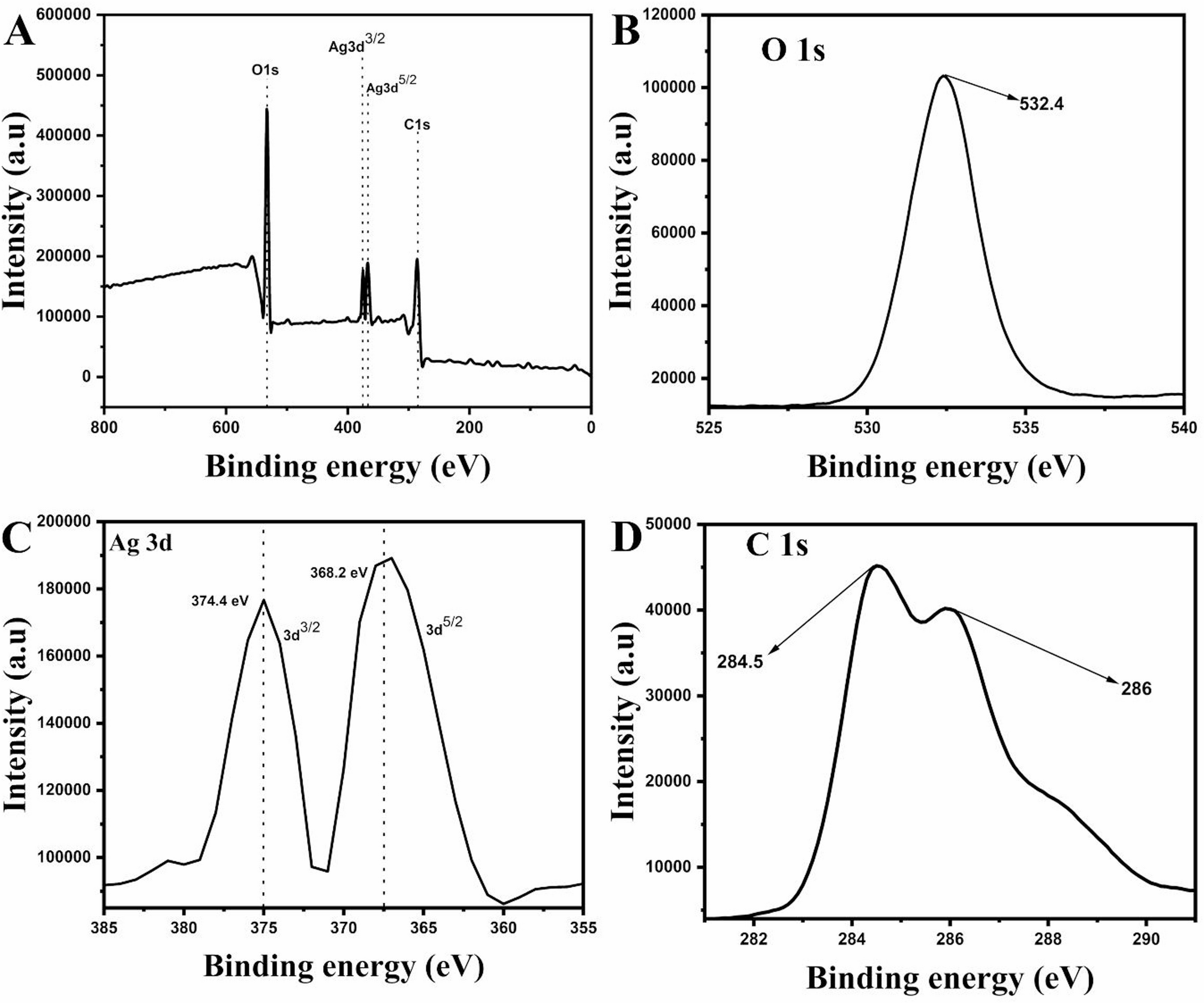

XPS high-resolution spectra of SP-AgNPs (A) survey spectrum, (B) O 1 s orbital, (C) Ag 3 d orbital, and (D) C 1 s orbital.
Fig. 5 | Scientific Reports
