Fig. 6
From: Comprehensive structural model for the evaluation of HME humidification properties

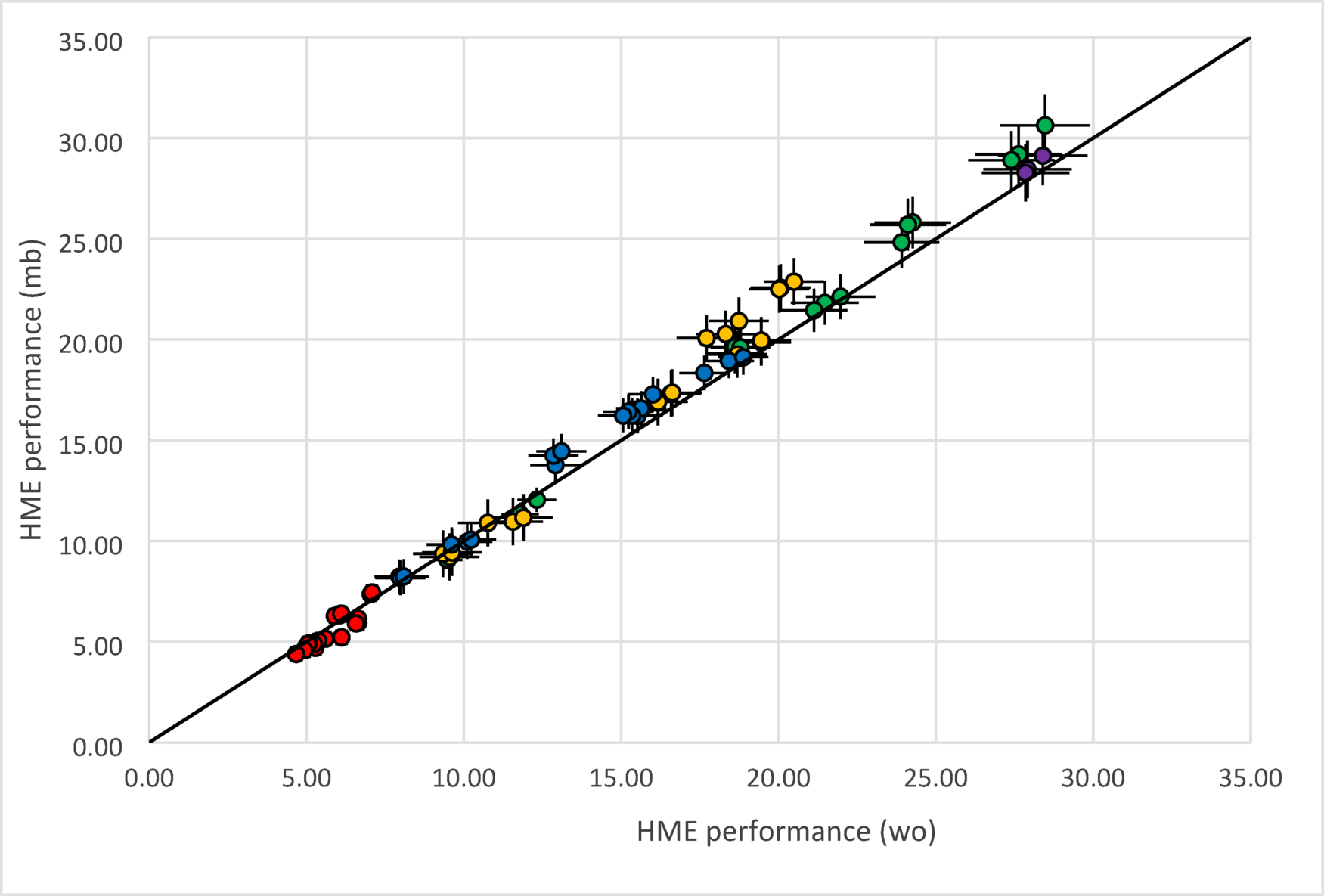

HME Performance [mg] calculated from mb and wo and the related volumes at both target humidities, (44 and 37 mg/l) for 3 specimen of 5 HME types. Horizontal and vertical bars indicate 5% range of the corresponding data point.
