Fig. 6
From: Buffering effects of supporting electrolytes on pH profiles in electrochemical cells

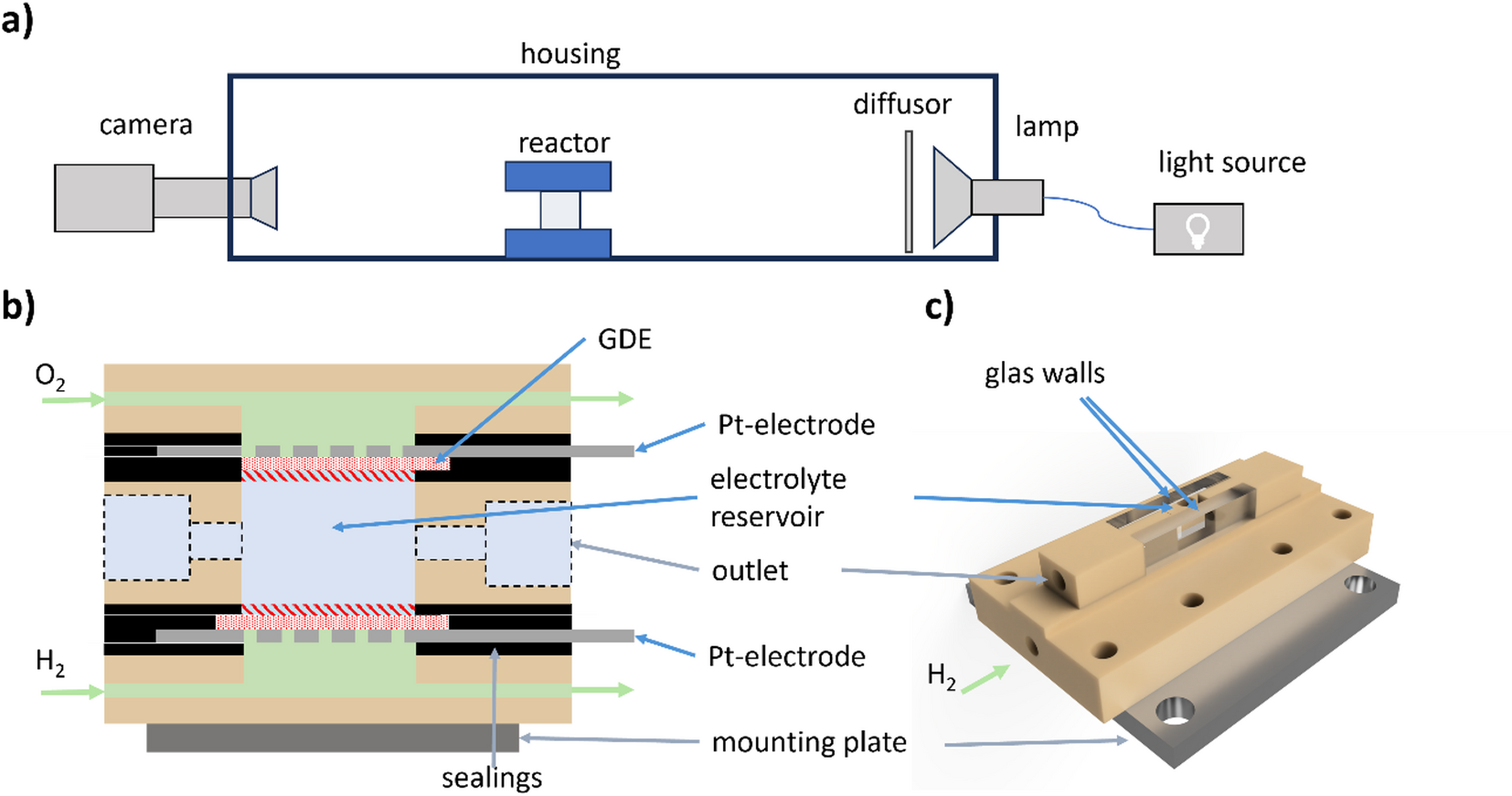

Experimental setup for optical pH measurements. (a) Schematic overview of the whole setup. (b) Schematic cross section of the reaction. The red-shaded area indicates the area which is optically not observable. (c) 3D visualization of the optical cell.
