Fig. 2 | Scientific Reports

Fig. 2

From: Transcriptome analysis combined with single-cell analysis identified that APOC1 influences cholesterol transport by macrophages in ccRCC

Fig. 2

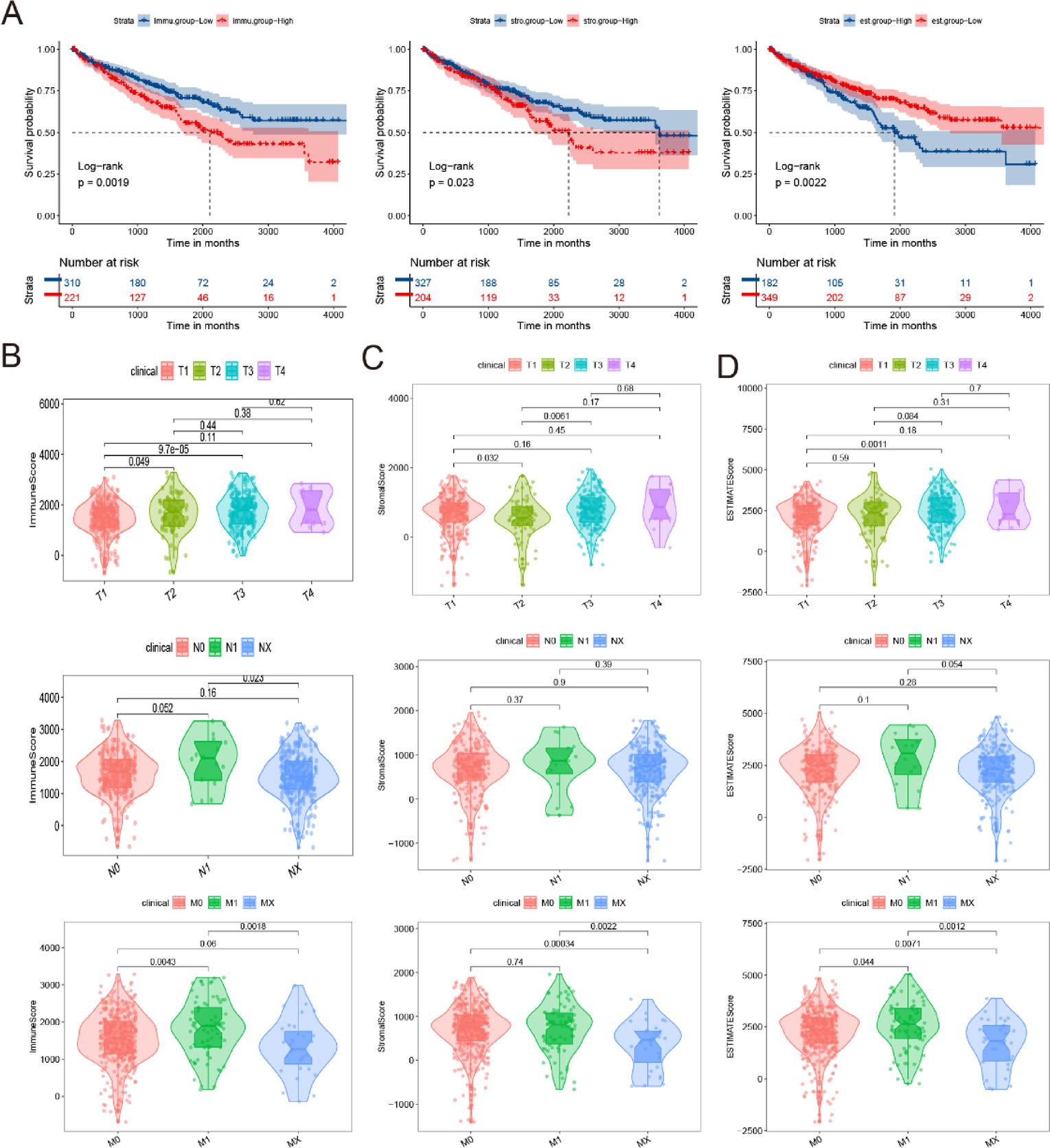

Correlation analysis between immune characteristics and prognostic features of ccRCC patients. (A) Kaplan–Meier survival analysis for ccRCC patients grouped into high or low scores in ImmuneScore, StromalScore and ESTIMATEScore. p = 0.0019, 0.023 and 0.0022, (B–D) Distribution of ImmuneScore, StromalScore, and ESTIMATEScore in the T, N, M classification. respectively, by Kruskal–Wallis rank sum test.
