Fig. 5

From: The effects of ex vivo physical cold atmospheric plasma treatment on endothelial cells in human corneal explants and its potential for in vivo application in refractory corneal ulcers

Fig. 5The alternative text for this image may have been generated using AI.

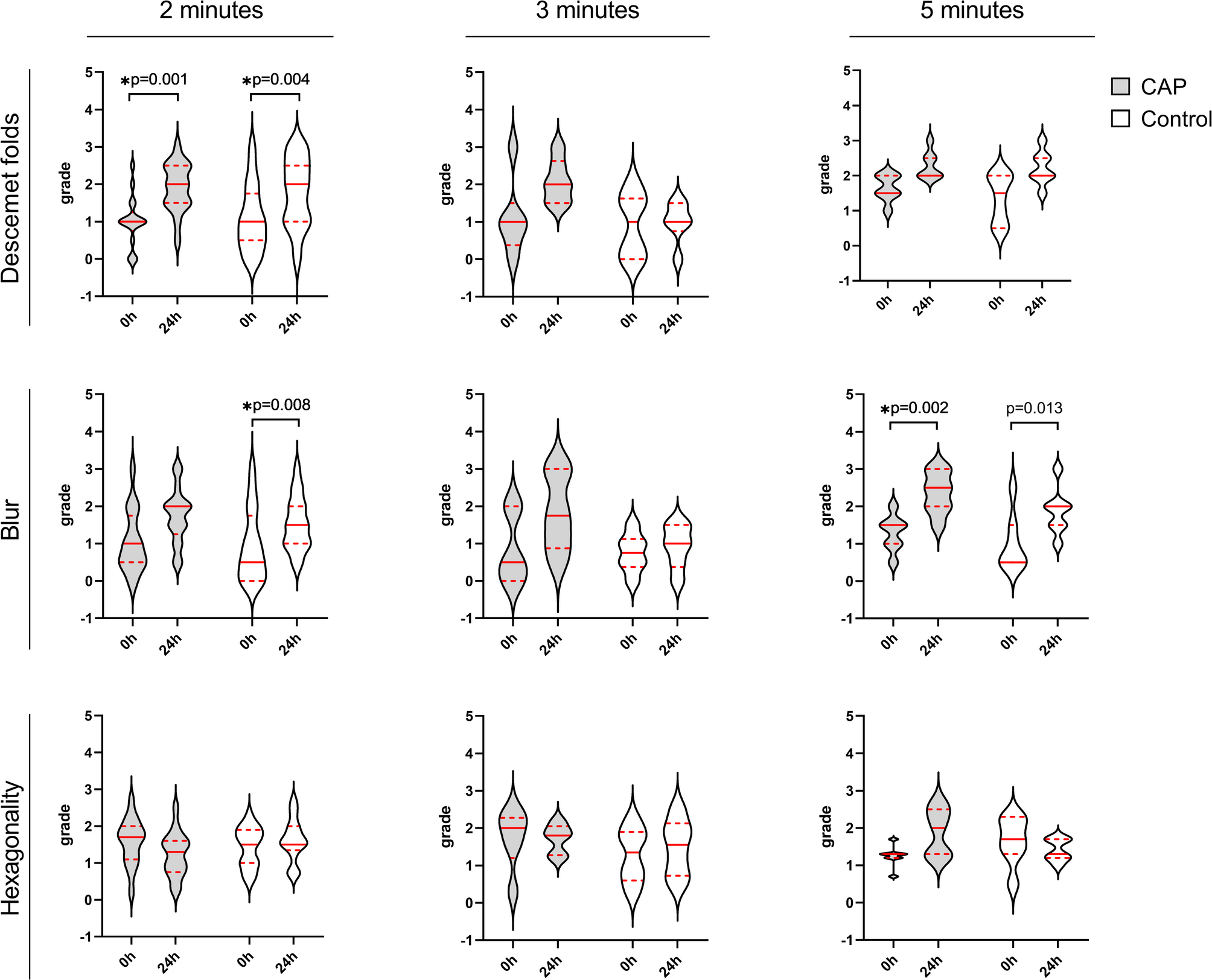

Violin plots of endothelial cell grades for the criteria descemet folds, blur, and hexagonality before (0 h) and 24 h after CAP or control treatment at 2, 3, and 5 min treatment time (2 min. n = 17, 3 min. n = 6, 5 min. n = 7). The width of the violins reflects the count of the data points at a given grade, whereby the shape of the violins reflects the distribution of data points. The horizontal bars represent the median (red solid lines) and quartiles (red dashed lines). Statistical analysis: a non-parametric Friedman ANOVA with Bonferroni correction for 4 pairwise comparisons (CAP 0 h – CAP 24 h; Control 0 h – Control 24 h; CAP 0 h – Control 0 h; CAP 24 h – Control 24 h) was calculated for each criterium at each treatment time. *Level of significance: p < 0.0125.
