Fig. 4

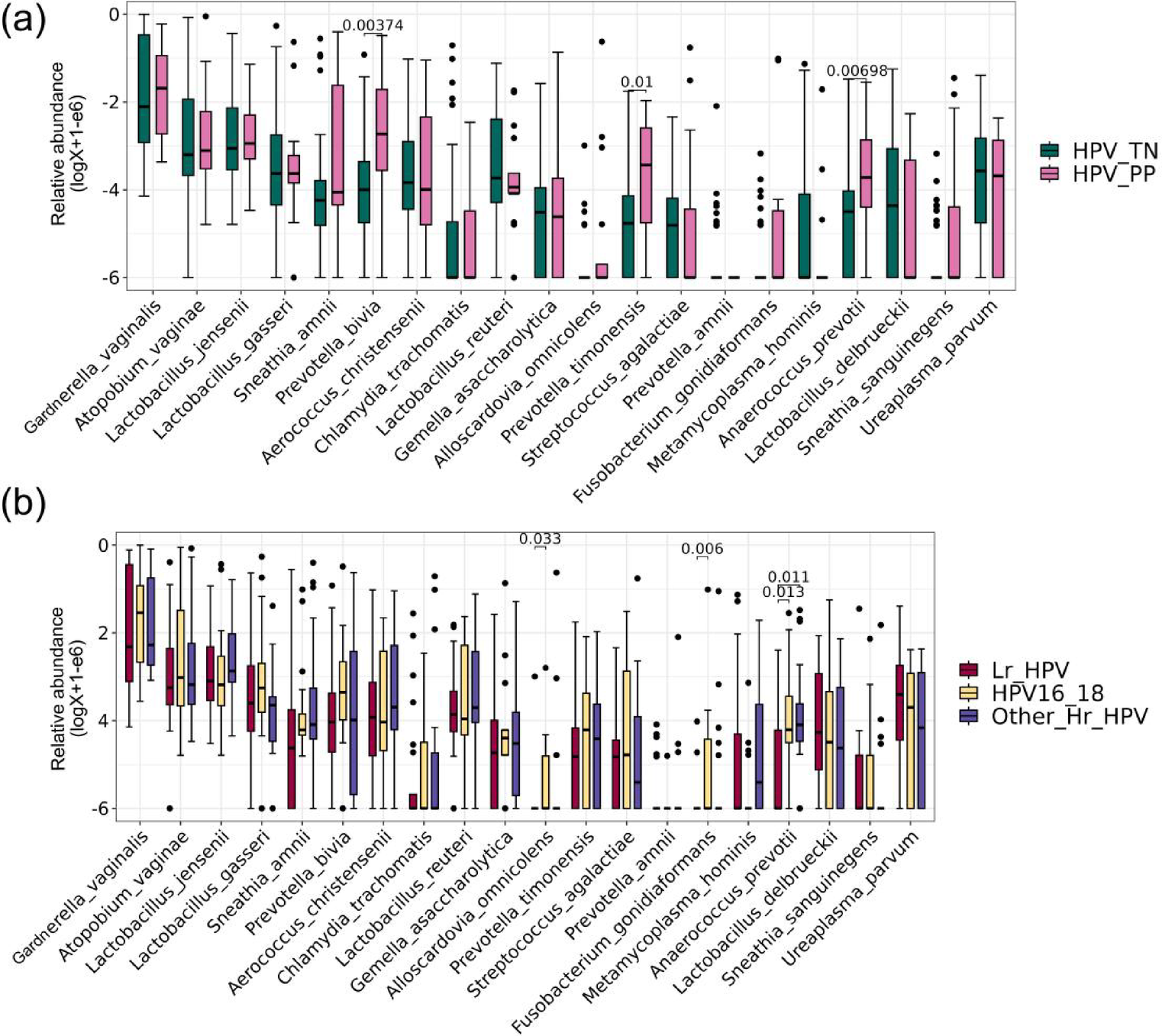

Relative abundance of the top 20 species in different groups based on the status of HPV infection. (a) Relative abundance of the top 20 species in the group with HPV persistent-positive (HPV_PP) and the group with HPV turn-negative (HPV_TN). (b) Relative abundance of the top 20 species in the groups with different HPV genotypes of low-risk HPVs (Lr_HPV), co-infected with HPV16/18 (HPV16_18) and with other high-risk HPVs (Other_Hr_HPV). The detection of Gardnerella vaginalis in the present study may represent a mixture of multiple Gardnerella species.
